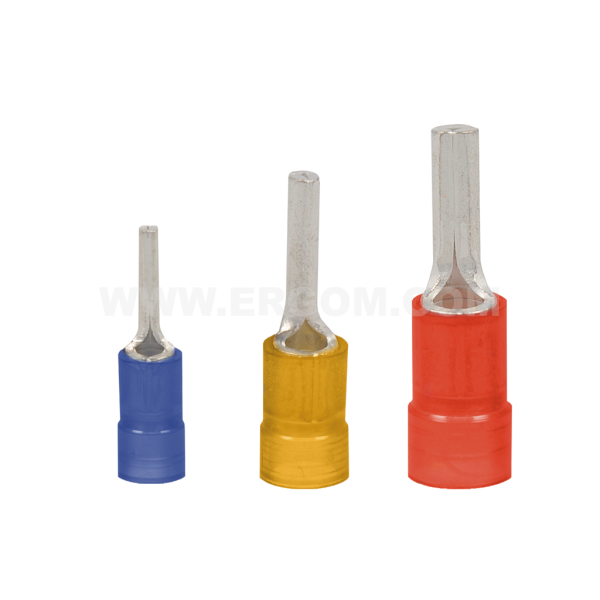

Insulated pin terminals, KII...PC type

EASY ENTRY

Main data of the product series

Product name
Insulated pin terminals, KII...PC type
Category
PC insulation
Operating temperature [°C]
-50 ÷ +120
Surface
tin-plated
Material
Cu
Insulation
polycarbonate

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KII 1-10 PC E09KO-02040200200 10 100 pkt. Price on request
KII 1-12 PC E09KO-02040200300 2 100 pkt. Price on request
KII 1-16 PC E09KO-02040200400 10 100 pkt. Price on request
KII 2,5-10 PC E09KO-02040200500 2 100 pkt. Price on request
KII 2,5-12 PC E09KO-02040200600 2 100 pkt. Price on request
KII 2,5-16 PC E09KO-02040200800 10 100 pkt. Price on request
KII 6-14 PC E09KO-02040200900 2 100 pkt. Price on request
KII 10-12 PC E09KO-02040201000 100 100 pcs. Price on request

Selected lines: 0

Technical data

General data

Insulation polycarbonate
Material Cu
Halogen-free yes
Surface tin-plated
Operating temperature [°C] -50 ÷ +120
Wykonanie DIN 46231 – concerns only the tubular part
Name Insulation colour Design DIN d L1 L2 a D2 C W Cross-section [mm²]
KII 1-10 PC red A √ 1,6 21,0 10,0 4,8 1,9 – – 0,75÷1,0
KII 1-12 PC red A √ 1,6 23,0 12,0 4,8 1,9 – – 0,75÷1,0
KII 1-16 PC red A √ 1,6 27,0 16,0 4,8 1,9 – – 0,75÷1,0
KII 2,5-10 PC blue A √ 2,3 21,0 10,0 4,8 1,9 – – 1,5÷2,5
KII 2,5-12 PC blue A √ 2,3 23,0 12,0 4,8 1,9 – – 1,5÷2,5
KII 2,5-16 PC blue A √ 2,3 27,0 16,0 4,8 1,9 – – 1,5÷2,5
KII 6-14 PC yellow A – 3,5 27,0 14,0 6,0 2,7 – – 4÷6
KII 10-12 PC red B – 4,5 34,0 14,0 8,0 – 2,3 4,5 10

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_igielkowe_izolowane_typu_KII_PC_EN.pdf EN 07-08-2025 194.5 KB PDF Download
Catalog card ERGOM_Koncowki_igielkowe_izolowane_typu_KII_PC_PL.pdf PL 07-08-2025 214 KB PDF Download
