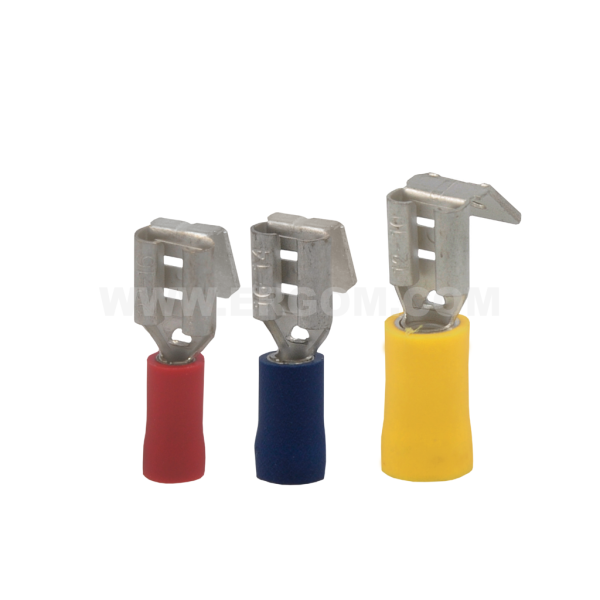

Insulated piggyback female push-on connectors, NWI…PCV type

EASY ENTRY

Main data of the product series

Product name
Insulated piggyback female push-on connectors, NWI…PCV type
Category
For double crimping (with copper sleeve)
Operating temperature [°C]
-5 ÷ +60
Insulation
polyvinyl chloride (PVC)
Surface
tin-plated
Material
brass
Note!
Terminals with PA and PC insulation available on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NWI 6,3-1/0,8 PCV E10KN-03010500701 1 100 pkt. Price on request
NWI 6,3-2,5/0,8 PCV E10KN-03010500801 1 100 pkt. Price on request
NWI 6,3-6/0,8 PCV E10KN-03010500901 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation polyvinyl chloride (PVC)
Material brass
Surface tin-plated
Operating temperature [°C] -5 ÷ +60
Size 6,3x0,8
L2 8,0
C 8,2
Name Insulation colour d L1 Cross-section [mm²]
NWI 6,3-1/0,8 PCV red 1,7 22,5 0,75÷1
NWI 6,3-2,5/0,8 PCV blue 2,3 22,5 1,5÷2,5
NWI 6,3-6/0,8 PCV yellow 3,4 24,0 4÷6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nasuwki_z_odgalezieniem_izolowane_NWI…PCV_EN.pdf EN 04-07-2025 242.01 KB PDF Download
Catalog card ERGOM_Nasuwki_z_odgalezieniem_izolowane_NWI…PCV_PL.pdf PL 04-07-2025 262 KB PDF Download
