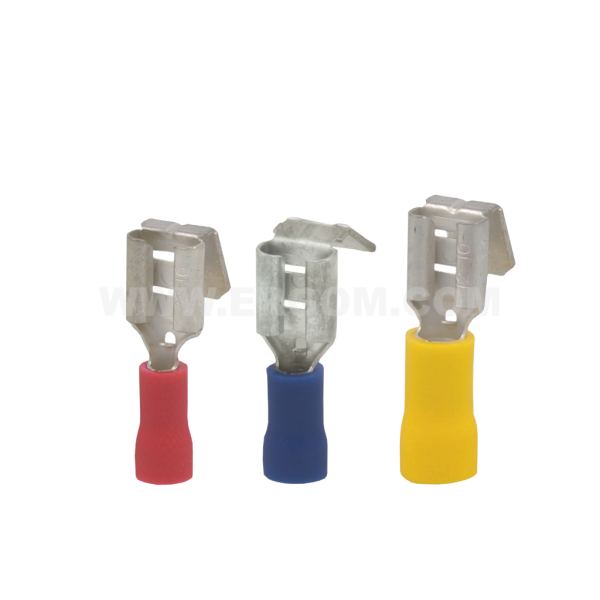

Insulated piggyback female push-on connectors, NWI...BPCV type

Insulated piggyback female push-on connectors, NWI...BPCV type

Main data of the product series

Product name
Insulated piggyback female push-on connectors, NWI...BPCV type
Category
For single crimping
Operating temperature [°C]
-5 ÷ +60
Insulation
polyvinyl chloride (PVC)
Surface
tin-plated
Material
brass

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NWI 6,3-1/0,8 BPCV E10KN-03010600101 1 100 pkt. Price on request
NWI 6,3-2,5/0,8 BPCV E10KN-03010600201 1 100 pkt. Price on request
NWI 6,3-6/0,8 BPCV E10KN-03010600301 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation polyvinyl chloride (PVC)
Material brass
Surface tin-plated
Operating temperature [°C] -5 ÷ +60
Size 6,3x0,8
L2 8,0
C 8,2
Name Insulation colour d L1 Cross-section [mm²]
NWI 6,3-1/0,8 BPCV red 1,7 22,5 0,75÷1
NWI 6,3-2,5/0,8 BPCV blue 2,3 22,5 1,5÷2,5
NWI 6,3-6/0,8 BPCV yellow 3,4 24,5 4÷6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nasuwki_z_odgalezieniem_izolowane_NWI_B_PCV_EN.pdf EN 04-07-2025 277.98 KB PDF Download
Catalog card ERGOM_Nasuwki_z_odgalezieniem_izolowane_NWI_B_PCV_PL.pdf PL 04-07-2025 297.1 KB PDF Download
