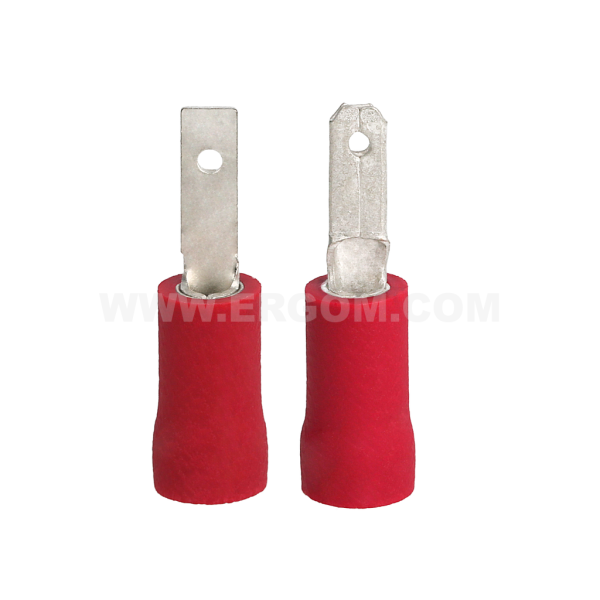

Insulated male push-on connectors, WI...PCV type

Main data of the product series

Product name: Insulated male push-on connectors, WI...PCV type
Category: For double crimping (with copper sleeve)
Operating temperature [°C]: -5 ÷ +60
Surface: tin-plated
Material: brass
Insulation: polyvinyl chloride (PCV)

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
WI 2,8-1/0,5 PCV	E10KN-03020101901	1	100	pkt.	Price on request
WI 2,8-1/0,8 PCV	E10KN-03020102001	1	100	pkt.	Price on request
WI 4,8-1/0,5 PCV	E10KN-03020102101	1	100	pkt.	Price on request
WI 4,8-1/0,8 PCV	E10KN-03020102201	1	100	pkt.	Price on request
WI 4,8-2,5/0,5 PCV	E10KN-03020102301	1	100	pkt.	Price on request
WI 4,8-2,5/0,8 PCV	E10KN-03020102401	1	100	pkt.	Price on request
WI 6,3-1/0,8 PCV	E10KN-03020102501	1	100	pkt.	Price on request
WI 6,3-2,5/0,8 PCV	E10KN-03020102601	1	100	pkt.	Price on request
WI 6,3-6/0,8 PCV	E10KN-03020102701	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyvinyl chloride (PCV)
Material	brass
Surface	tin-plated
Operating temperature [°C]	-5 ÷ +60

Name	Insulation colour	Size	d	L₁	L₂	Cross-section [mm²]
WI 2,8-1/0,5 PCV	red	2,8x0,5	1,7	18,7	6,5	0,75÷1
WI 2,8-1/0,8 PCV	red	2,8x0,8	1,7	18,7	6,5	0,75÷1
WI 4,8-1/0,5 PCV	red	4,8x0,5	1,7	19,2	7,0	0,75÷1
WI 4,8-1/0,8 PCV	red	4,8x0,8	1,7	20,8	7,6	0,75÷1
WI 4,8-2,5/0,5 PCV	blue	4,8x0,5	2,3	19,2	7,0	1,5÷2,5
WI 4,8-2,5/0,8 PCV	blue	4,8x0,8	2,3	20,8	7,6	1,5÷2,5
WI 6,3-1/0,8 PCV	red	6,3x0,8	1,7	20,8	7,6	0,75÷1
WI 6,3-2,5/0,8 PCV	blue	6,3x0,8	2,3	21,4	7,6	1,5÷2,5
WI 6,3-6/0,8 PCV	yellow	6,3x0,8	3,4	24,0	7,6	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wsuwki_izolowane_WI_PCV_EN.pdf	EN	04-07-2025	221.86 KB	PDF	Download
Catalog card	ERGOM_Wsuwki_izolowane_WI_PCV_PL.pdf	PL	04-07-2025	244.65 KB	PDF	Download
