Home Products Products Cable terminals Insulated connectors For single crimping Insulated male push-on connectors, WI...BPCV type

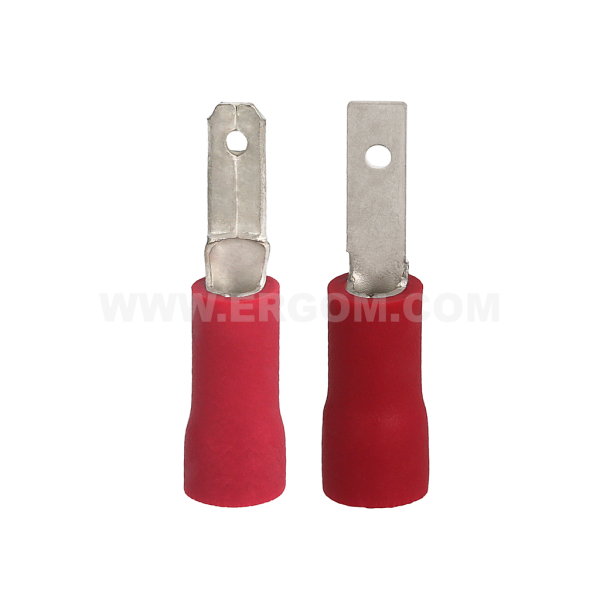

Insulated male push-on connectors, WI...BPCV type

Insulated male push-on connectors, WI...BPCV type

Main data of the product series

Product name: Insulated male push-on connectors, WI...BPCV type
Category: For single crimping
Operating temperature [°C]: -5 ÷ +60
Surface: tin-plated
Material: brass
Insulation: polyvinyl chloride (PVC)

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
WI 2,8-1/0,5 BPCV	E10KN-03020200101	1	100	pkt.	Price on request
WI 2,8-1/0,8 BPCV	E10KN-03020200201	1	100	pkt.	Price on request
WI 4,8-1/0,5 BPCV	E10KN-03020200301	1	100	pkt.	Price on request
WI 4,8-1/0,8 BPCV	E10KN-03020200401	1	100	pkt.	Price on request
WI 4,8-2,5/0,5 BPCV	E10KN-03020200501	1	100	pkt.	Price on request
WI 4,8-2,5/0,8 BPCV	E10KN-03020200601	1	100	pkt.	Price on request
WI 6,3-1/0,8 BPCV	E10KN-03020200701	1	100	pkt.	Price on request
WI 6,3-2,5/0,8 BPCV	E10KN-03020200801	1	100	pkt.	Price on request
WI 6,3-6/0,8 BPCV	E10KN-03020200901	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyvinyl chloride (PVC)
Material	brass
Surface	tin-plated
Operating temperature [°C]	-5 ÷ +60

Name	Insulation colour	Size	d	L₁	L₂	Cross-section [mm²]
WI 2,8-1/0,5 BPCV	red	2,8x0,5	1,7	18,7	6,5	0,75÷1
WI 2,8-1/0,8 BPCV	red	2,8x0,8	1,7	18,7	6,5	0,75÷1
WI 4,8-1/0,5 BPCV	red	4,8x0,5	1,7	19,2	7,0	0,75÷1
WI 4,8-1/0,8 BPCV	red	4,8x0,8	1,7	20,8	7,6	0,75÷1
WI 4,8-2,5/0,5 BPCV	blue	4,8x0,5	2,3	19,2	7,0	1,5÷2,5
WI 4,8-2,5/0,8 BPCV	blue	4,8x0,8	2,3	20,8	7,6	1,5÷2,5
WI 6,3-1/0,8 BPCV	red	6,3x0,8	1,7	20,8	7,6	0,75÷1
WI 6,3-2,5/0,8 BPCV	blue	6,3x0,8	2,3	21,4	7,6	1,5÷2,5
WI 6,3-6/0,8 BPCV	yellow	6,3x0,8	3,4	24,0	7,6	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wsuwki_izolowane_typu_WI_B_PCV_EN.pdf	EN	04-07-2025	220.4 KB	PDF	Download
Catalog card	ERGOM_Wsuwki_izolowane_typu_WI_B_PCV_PL.pdf	PL	04-07-2025	241.09 KB	PDF	Download
