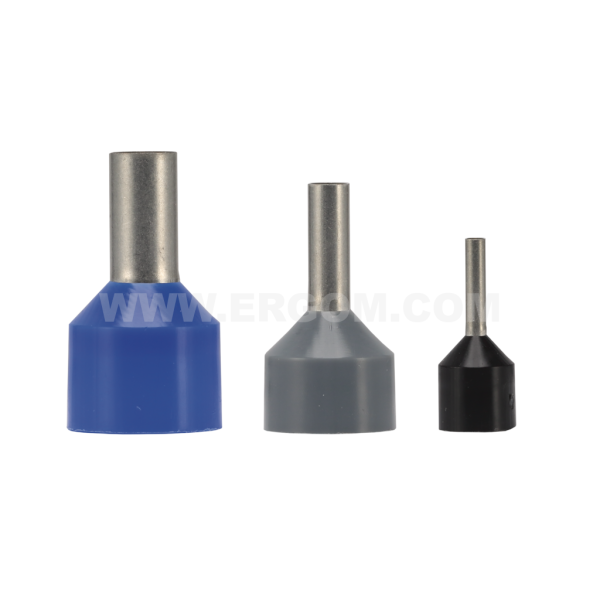

Insulated cord end terminals with thicker insulation, HIG type

Insulated cord end terminals with thicker insulation, HIG type

Main data of the product series

Product name: Insulated cord end terminals with thicker insulation, HIG type
Category: Insulated
Operating temperature [°C]: -30 ÷ +105
Surface: tin-plated
Material: Cu
Insulation: polypropylene

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
HIG 1,5/8 DIN	E08KH-02010701201	2	100	pkt.	Price on request
HIG 1,5/10 DIN	E08KH-02010701301	2	100	pkt.	Price on request
HIG 2,5/8 DIN	E08KH-02010701401	2	100	pkt.	Price on request
HIG 2,5/12 DIN	E08KH-02010701501	2	100	pkt.	Price on request
HIG 4/10 DIN	E08KH-02010701601	2	100	pkt.	Price on request
HIG 6/12 DIN	E08KH-02010701701	2	100	pkt.	Price on request
HIG 10/12 DIN	E08KH-02010701801	1	100	pkt.	Price on request
HIG 16/12 DIN	E08KH-02010701901	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polypropylene
Material	Cu
Halogen-free	yes
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +105
Wykonanie	DIN 46228/4 (concerns only the copper part of terminal)

Name	L₁	L₂	d₁	d₂	s₁	s₂	Cross-section [mm²]	AWG cross-section	Insulation colour
HIG 1,5/8 DIN	17,5	8	1,7	7,5	0,15	0,3	1,5	16	black
HIG 1,5/10 DIN	19,5	10	1,7	7,5	0,15	0,3	1,5	16	black
HIG 2,5/8 DIN	17,5	8	2,2	8	0,15	0,3	2,5	14	blue
HIG 2,5/12 DIN	21,5	12	2,2	8	0,15	0,3	2,5	14	blue
HIG 4/10 DIN	19,5	10	2,8	9,5	0,2	0,5	4	12	grey
HIG 6/12 DIN	23	12	3,5	10	0,2	0,5	6	10	yellow
HIG 10/12 DIN	24	12	4,5	11,5	0,2	0,5	10	8	red
HIG 16/12 DIN	25,5	12	5,8	13,5	0,2	0,5	16	6	blue

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Koncowki_tulejkowe_izolowane_typu_HIG_EN.pdf	EN	04-07-2025	298.84 KB	PDF	Download
Catalog card	ERGOM_Koncowki_tulejkowe_izolowane_typu_HIG_PL.pdf	PL	04-07-2025	319.4 KB	PDF	Download
