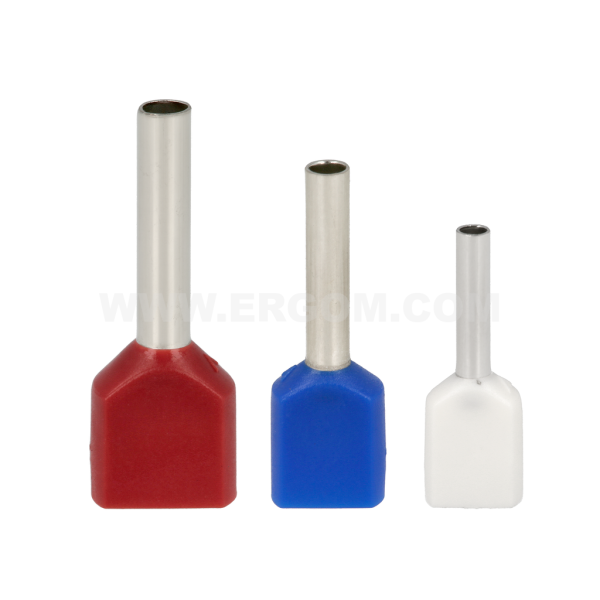

Insulated cord end terminals, HI 2X type

Insulated cord end terminals, HI 2X type

Main data of the product series

Product name
Insulated cord end terminals, HI 2X type
Category
Insulated
Material
Cu
Operating temperature [°C]
-30 ÷ +105
Surface
tin-plated
Insulation
polyamide
Note!
Other lengths and colours on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
HI 2X0,5/8 E08KH-02020100101 1 500 pkt. Price on request
HI 2X0,5/8 E08KH-02020103901 2 100 pkt. Price on request
HI 2X0,5/8 DIN E08KH-02020100201 1 500 pkt. Price on request
HI 2X0,5/8 DIN E08KH-02020104001 2 100 pkt. Price on request
HI 2X0,75/8 E08KH-02020100301 1 500 pkt. Price on request
HI 2X0,75/8 E08KH-02020104121 2 100 pkt. Price on request
HI 2X0,75/10 E08KH-02020100401 1 500 pkt. Price on request
HI 2X0,75/10 E08KH-02020104401 2 100 pkt. Price on request
HI 2X0,75/10 DIN E08KH-02020100601 1 500 pkt. Price on request
HI 2X0,75/10 DIN E08KH-02020104501 2 100 pkt. Price on request
HI 2X0,75/10 F E08KH-02020100801 1 500 pkt. Price on request
HI 2X0,75/10 F E08KH-02020104601 2 100 pkt. Price on request
HI 2X1/8 E08KH-02020100901 1 500 pkt. Price on request
HI 2X1/8 E08KH-02020104721 2 100 pkt. Price on request
HI 2X1/10 E08KH-02020101001 1 500 pkt. Price on request
HI 2X1/10 E08KH-02020104921 2 100 pkt. Price on request
HI 2X1/8 DIN E08KH-02020101101 1 500 pkt. Price on request
HI 2X1/8 DIN E08KH-02020104801 2 100 pkt. Price on request
HI 2X1/10 DIN E08KH-02020101201 1 500 pkt. Price on request
HI 2X1/10 DIN E08KH-02020105001 2 100 pkt. Price on request
HI 2X1,5/8 E08KH-02020101301 1 500 pkt. Price on request
HI 2X1,5/8 E08KH-02020105121 2 100 pkt. Price on request
HI 2X1,5/12 E08KH-02020101401 1 500 pkt. Price on request
HI 2X1,5/12 E08KH-02020105301 2 100 pkt. Price on request
HI 2X1,5/8 DIN E08KH-02020101501 1 500 pkt. Price on request
HI 2X1,5/8 DIN E08KH-02020105201 2 100 pkt. Price on request
HI 2X2,5/10 E08KH-02020101701 1 500 pkt. Price on request
HI 2X2,5/10 E08KH-02020105521 2 100 pkt. Price on request
HI 2X2,5/13 E08KH-02020101801 1 500 pkt. Price on request
HI 2X2,5/13 E08KH-02020105701 2 100 pkt. Price on request
HI 2X2,5/10 F E08KH-02020101901 1 500 pkt. Price on request
HI 2X2,5/10 F E08KH-02020105601 2 100 pkt. Price on request
HI 2X2,5/13 F E08KH-02020102001 1 500 pkt. Price on request
HI 2X2,5/13 F E08KH-02020105801 2 100 pkt. Price on request
HI 2X4/12 E08KH-02020102101 1 100 pkt. Price on request
HI 2X4/12 F E08KH-02020102201 1 100 pkt. Price on request
HI 2X6/14 E08KH-02020102301 1 100 pkt. Price on request
HI 2X6/14 DIN E08KH-02020102401 1 100 pkt. Price on request
HI 2X6/14 F E08KH-02020102501 1 100 pkt. Price on request
HI 2X10/14 E08KH-02020102601 1 100 pkt. Price on request
HI 2X10/14 DIN E08KH-02020102701 1 100 pkt. Price on request
HI 2X10/14 F E08KH-02020102801 1 100 pkt. Price on request
HI 2X16/14 E08KH-02020102901 1 50 pkt. Price on request
HI 2X16/14 DIN E08KH-02020103001 1 50 pkt. Price on request
HI 2X16/14 F E08KH-02020103101 1 50 pkt. Price on request
HI 2X0,75/8 DIN E08KH-02020100501 1 500 pkt. Price on request
HI 2X0,75/8 DIN E08KH-02020104201 2 100 pkt. Price on request
HI 2X0,75/8 F E08KH-02020100701 1 500 pkt. Price on request
HI 2X0,75/8 F E08KH-02020104301 2 100 pkt. Price on request
HI 2X1,5/12 DIN E08KH-02020101601 1 500 pkt. Price on request
HI 2X1,5/12 DIN E08KH-02020105401 2 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation polyamide
Material Cu
Halogen-free yes
Surface tin-plated
Operating temperature [°C] -30 ÷ +105
Name L1 L2 d1 C x B s1 s2 Cross-section [mm²] AWG cross-section Insulation colour
HI 2X0,5/8 15,0 8 1,4 2,5x4,7 0,15 0,25 2x0,5 2x20 orange
HI 2X0,5/8 DIN 15,0 8 1,4 2,5x4,7 0,15 0,25 2x0,5 2x20 white
HI 2X0,75/8 15,0 8 1,7 2,8x5 0,15 0,25 2x0,75 2x18 white
HI 2X0,75/10 17,0 10 1,7 2,8x5 0,15 0,25 2x0,75 2x18 white
HI 2X0,75/10 DIN 17,0 10 1,7 2,8x5 0,15 0,25 2x0,75 2x18 grey
HI 2X0,75/10 F 17,0 10 1,7 2,8x5 0,15 0,25 2x0,75 2x18 blue
HI 2X1/8 15,0 8 2,0 3,4x5,4 0,15 0,30 2x1 2x18 yellow
HI 2X1/10 17,0 10 2,0 3,4x5,4 0,15 0,30 2x1 2x18 yellow
HI 2X1/8 DIN 15,0 8 2,0 3,4x5,4 0,15 0,30 2x1 2x18 red
HI 2X1/10 DIN 17,0 10 2,0 3,4x5,4 0,15 0,30 2x1 2x18 red
HI 2X1,5/8 16,0 8 2,2 3,6x6,6 0,15 0,30 2x1,5 2x16 red
HI 2X1,5/12 20,0 12 2,2 3,6x6,6 0,15 0,30 2x1,5 2x16 red
HI 2X1,5/8 DIN 16,0 8 2,2 3,6x6,6 0,15 0,30 2x1,5 2x16 black
HI 2X2,5/10 18,5 10 2,8 4,2x7,8 0,20 0,30 2x2,5 2x14 blue
HI 2X2,5/13 21,5 13 2,8 4,2x7,8 0,20 0,30 2x2,5 2x14 blue
HI 2X2,5/10 F 18,5 10 2,8 4,2x7,8 0,20 0,30 2x2,5 2x14 grey
HI 2X2,5/13 F 21,5 13 2,8 4,2x7,8 0,20 0,30 2x2,5 2x14 grey
HI 2X4/12 23,0 12 3,7 4,9x8,9 0,20 0,40 2x4 2x12 grey
HI 2X4/12 F 23,0 12 3,7 4,9x8,9 0,20 0,40 2x4 2x12 orange
HI 2X6/14 26,0 14 4,8 6,9x10,0 0,20 0,40 2x6 2x10 black
HI 2X6/14 DIN 26,0 14 4,8 6,9x10,0 0,20 0,40 2x6 2x10 yellow
HI 2X6/14 F 26,0 14 4,8 6,9x10,0 0,20 0,40 2x6 2x10 green
HI 2X10/14 26,0 14 6,4 7,2x13 0,20 0,40 2x10 2x8 ivory
HI 2X10/14 DIN 26,0 14 6,4 7,2x13 0,20 0,40 2x10 2x8 red
HI 2X10/14 F 26,0 14 6,4 7,2x13 0,20 0,40 2x10 2x8 brown
HI 2X16/14 30,0 14 8,2 9,6x18,4 0,20 0,40 2x16 2x6 green
HI 2X16/14 DIN 30,0 14 8,2 9,6x18,4 0,20 0,40 2x16 2x6 blue
HI 2X16/14 F 30,0 14 8,2 9,6x18,4 0,20 0,40 2x16 2x6 ivory
HI 2X0,75/8 DIN 15,0 8 1,7 2,8x5 0,15 0,25 2x0,75 2x18 grey
HI 2X0,75/8 F 15,0 8 1,7 2,8x5 0,15 0,25 2x0,75 2x18 blue
HI 2X1,5/12 DIN 20,0 12 2,2 3,6x6,6 0,15 0,30 2x1,5 2x16 black

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_tulejkowe_izolowane_typu_HI_2X_EN.pdf EN 04-07-2025 318.27 KB PDF Download
Catalog card ERGOM_Koncowki_tulejkowe_izolowane_typu_HI_2X_PL.pdf PL 04-07-2025 328.74 KB PDF Download
