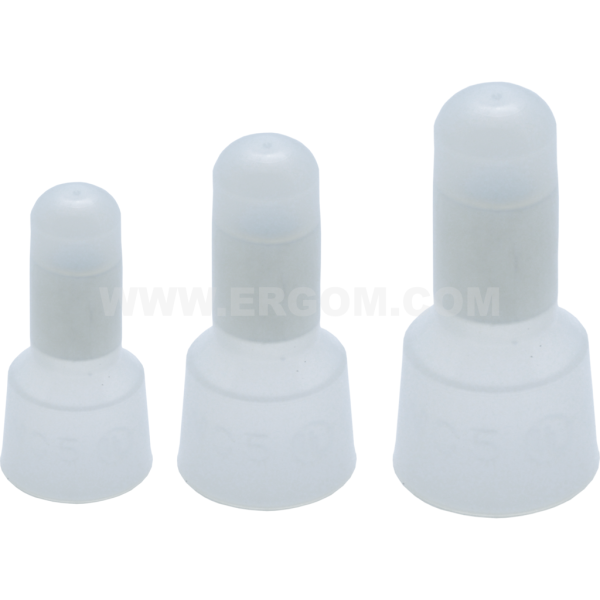

Insulated closed end connectors, ZPI type

Insulated closed end connectors, ZPI type

Main data of the product series

Product name: Insulated closed end connectors, ZPI type
Category: PA insulation
Operating temperature [°C]: -30 ÷ +95
Insulation: polyamide 6.6
Surface: tin-plated
Material: Cu

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
ZPI 1	E14KI-06010100101	1	100	pkt.	Price on request
ZPI 2,5	E14KI-06010100201	1	100	pkt.	Price on request
ZPI 6	E14KI-06010100301	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyamide 6.6
Material	Cu
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +95

Name	D	L1	L2	d₁	d₂	d3	L3	Cross-section [mm²]
ZPI 1	5,0	18,0	12,0	6,3	2,4	3,4	6,7	0,5÷1,0
ZPI 2,5	5,5	20,0	13,0	8,0	3,1	4,0	7,0	1,5÷2,5
ZPI 6	7,3	24,6	14,7	10,5	4,2	5,7	8,1	4÷6

Guide

Insulated closed end connectors, ZPI type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Zakonczenia_przewodow_izolowane_typu_ZPI_EN.pdf	EN	04-07-2025	254.82 KB	PDF	Download
Catalog card	ERGOM_Zakonczenia_przewodow_izolowane_typu_ZPI_PL.pdf	PL	04-07-2025	266.93 KB	PDF	Download
