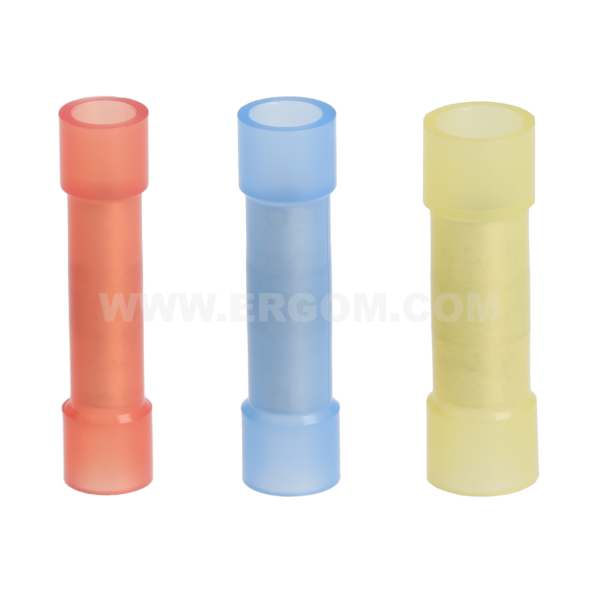

Insulated "butt splice" connectors, KLI type

Insulated "butt splice" connectors, KLI type

Main data of the product series

Product name: Insulated "butt splice" connectors, KLI type
Category: PA insulation
Operating temperature [°C]: -30 ÷ +95
Surface: tin-plated
Material: Cu
Insulation: polyamide 6.6

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
KLI 0,5	E09KO-02060100101	2	100	pkt.	Price on request
KLI 1	E09KO-02060100201	2	100	pkt.	Price on request
KLI 2,5	E09KO-02060100301	2	100	pkt.	Price on request
KLI 6	E09KO-02060100401	2	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyamide 6.6
Material	Cu
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +95
Świadectwo uznania typu PRS	TE/1137/880567/25

Name	Insulation colour	L₁	L₂	d₁	d₂	Cross-section [mm²]
KLI 0,5	yellow	20,0	12	1,3	2,0	0,2÷0,5
KLI 1	red	26,0	15	1,7	4,2	0,75÷1,0
KLI 2,5	blue	26,0	15	2,3	4,8	1,5÷2,5
KLI 6	yellow	28,0	15	3,6	6,5	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Laczniki_izolowane_typu_KLI_do_laczenia_na_styk_EN.pdf	EN	04-07-2025	340.69 KB	PDF	Download
Catalog card	ERGOM_Laczniki_izolowane_typu_KLI_do_laczenia_na_styk_PL.pdf	PL	04-07-2025	337.55 KB	PDF	Download
