Home Products Products Cable terminals Insulated ring, fork and pin joints PCV insulation Insulated "butt splice" connectors, KLI...PCV type

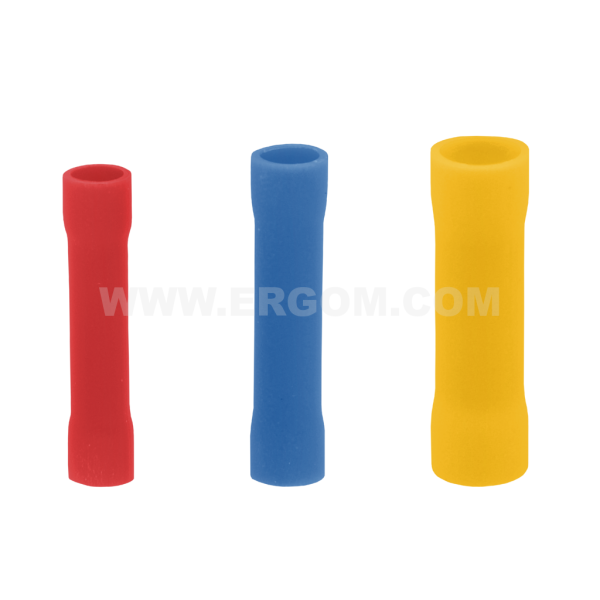

Insulated "butt splice" connectors, KLI...PCV type

Insulated "butt splice" connectors, KLI...PCV type

Main data of the product series

Product name: Insulated "butt splice" connectors, KLI...PCV type
Category: PCV insulation
Operating temperature [°C]: -5 ÷ +60
Surface: tin-plated
Material: Cu
Insulation: polyvinyl chloride (PVC)

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
KLI 1 PCV	E09KO-02060300101	2	100	pkt.	Price on request
KLI 2,5 PCV	E09KO-02060300201	2	100	pkt.	Price on request
KLI 6 PCV	E09KO-02060300301	2	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyvinyl chloride (PVC)
Material	Cu
Surface	tin-plated
Operating temperature [°C]	-5 ÷ +60
L₂	15

Name	Insulation colour	L₁	d₁	d₂	Cross-section [mm²]
KLI 1 PCV	red	25	1,7	4,3	0,75÷1,0
KLI 2,5 PCV	blue	26,5	2,4	4,8	1,5÷2,5
KLI 6 PCV	yellow	26,5	3,6	6,5	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Laczniki_izolowane_typu_KLI_PCV_do_laczenia_na_styk_EN.pdf	EN	04-07-2025	173.85 KB	PDF	Download
Catalog card	ERGOM_Laczniki_izolowane_typu_KLI_PCV_do_laczenia_na_styk_PL.pdf	PL	04-07-2025	190.69 KB	PDF	Download
