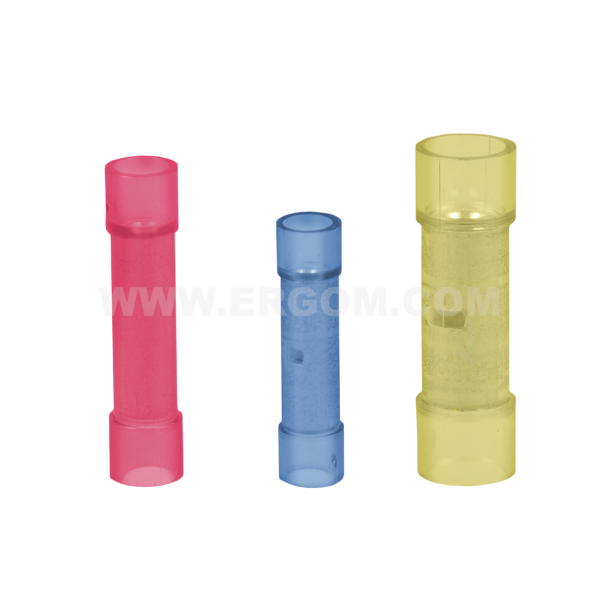

Insulated "butt splice" connectors, KLI...PC type

Insulated "butt splice" connectors, KLI...PC type

Main data of the product series

Product name: Insulated "butt splice" connectors, KLI...PC type
Category: PC insulation
Operating temperature [°C]: -50 ÷ +120
Surface: tin-plated
Material: Cu
Insulation: polycarbonate

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
KLI 1 PC	E09KO-02060200101	2	100	pkt.	Price on request
KLI 2,5 PC	E09KO-02060200201	2	100	pkt.	Price on request
KLI 6 PC	E09KO-02060200301	2	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polycarbonate
Material	Cu
Halogen-free	yes
Surface	tin-plated
Operating temperature [°C]	-50 ÷ +120
L₂	15

Name	Insulation colour	L₁	d₁	d₂	Cross-section [mm²]
KLI 1 PC	red	25	1,7	4,0	0,75÷1,0
KLI 2,5 PC	blue	25	2,3	4,5	1,5÷2,5
KLI 6 PC	yellow	27	3,4	6,3	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Laczniki_izolowane_typu_KLI_PC_do_laczenia_na_styk_EN.pdf	EN	12-08-2025	173.51 KB	PDF	Download
Catalog card	ERGOM_Laczniki_izolowane_typu_KLI_PC_do_laczenia_na_styk_PL.pdf	PL	12-08-2025	191.35 KB	PDF	Download
