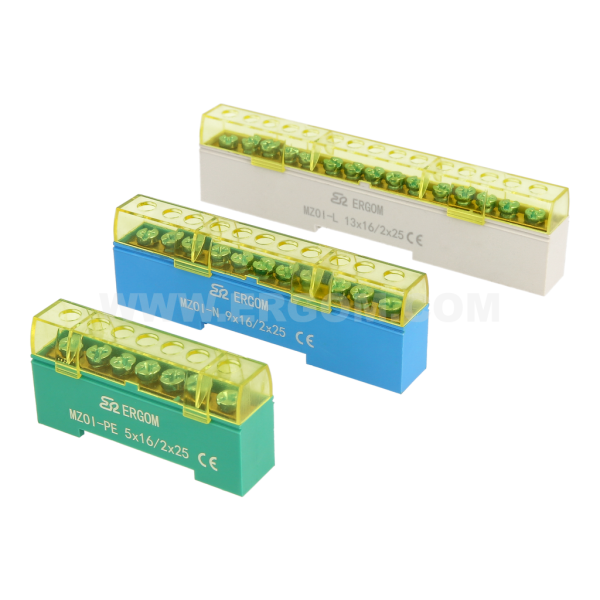

Insulated brass protective ground terminals, MZOI-…16/25 type, mounted on rails

Insulated brass protective ground terminals, MZOI-…16/25 type, mounted on rails

Main data of the product series

Product name
Insulated brass protective ground terminals, MZOI-…16/25 type, mounted on rails
Category
Insulated brass protective ground terminals
Standards
EN 60947-7-1; EN IEC 60947-1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MZOI-L 5x16/2x25 R33RA-01010108001 10 10 pcs. Price on request
MZOI-L 9x16/2x25 R33RA-01010108101 10 10 pcs. Price on request
MZOI-L 13x16/2x25 R33RA-01010108201 10 10 pcs. Price on request
MZOI-N 5x16/2x25 R33RA-01010108301 10 10 pcs. Price on request
MZOI-N 9x16/2x25 R33RA-01010108401 10 10 pcs. Price on request
MZOI-N 13x16/2x25 R33RA-01010108501 10 10 pcs. Price on request
MZOI-PE 5x16/2x25 R33RA-01010108601 10 10 pcs. Price on request
MZOI-PE 9x16/2x25 R33RA-01010108701 10 10 pcs. Price on request
MZOI-PE 13x16/2x25 R33RA-01010108801 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Circuit insulation length [mm] 10
Insulation voltage [V] 1000
Operating temperature [°C] -40 ÷ +110
Body material polyamide 6.6
Cover material polycarbonate
Bolt material galvanised steel
Clamp material brass
Recommended screwdriver tip type (flat) 6,5/1,2
Recommended screwdriver tip type (cross) PZ3
Terminal crimping shape on cord hexagon
Recommended tightening torque [Nm] 2,6
Circuit insulation length [mm] 10
Halogen-free yes
S 15
D 31
Normy EN 60947-7-1; EN IEC 60947-1
Name Number of clamps x cross-section [mm²] Colour W
MZOI-L 5x16/2x25 5x16/2x25 yellow-grey 63
MZOI-L 9x16/2x25 9x16/2x25 yellow-grey 95,4
MZOI-L 13x16/2x25 13x16/2x25 yellow-grey 125,3
MZOI-N 5x16/2x25 5x16/2x25 yellow-blue 63
MZOI-N 9x16/2x25 9x16/2x25 yellow-blue 95,4
MZOI-N 13x16/2x25 13x16/2x25 yellow-blue 125,3
MZOI-PE 5x16/2x25 5x16/2x25 yellow-green 63
MZOI-PE 9x16/2x25 9x16/2x25 yellow-green 95,4
MZOI-PE 13x16/2x25 13x16/2x25 yellow-green 125,3

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zacisk_ochronny_MZOI-…16_25_mocowany_do_szyn_montazowych_EN.pdf EN 26-09-2025 323.35 KB PDF Download
Catalog card ERGOM_Zacisk_ochronny_MZOI-…16_25_mocowany_do_szyn_montazowych_PL.pdf PL 26-09-2025 342.81 KB PDF Download
