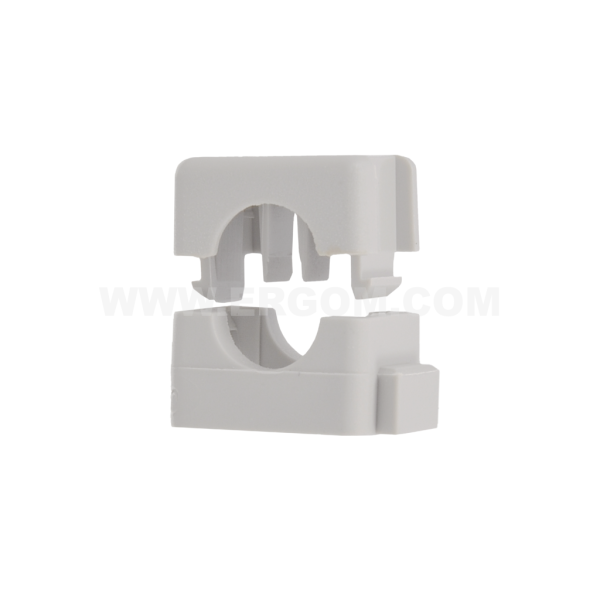

Installation holders, UI type

Installation holders, UI type

Main data of the product series

Product name
Installation holders, UI type
Category
Not mating with cable ties
Operating temperature [°C]
-30 ÷ +85
Material
polyamide 6.6
Flammability class
UL 94 HB
Note!
Holders of all sizes can be connected with “dovetail” type catches.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
UI 4-8 E01UI-01010100101 1 100 pkt. Price on request
UI 8-12 E01UI-01010100201 1 100 pkt. Price on request
UI 12-16 E01UI-01010100301 1 100 pkt. Price on request
UI 16-23 E01UI-01010100401 1 100 pkt. Price on request
UI 20-25 E01UI-01010100501 1 100 pkt. Price on request
UI 25-32 E01UI-01010100601 1 100 pkt. Price on request
UI 32-40 E01UI-01010100701 1 50 pkt. Price on request
UI 40-50 E01UI-01010100801 1 50 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Operating temperature [°C] -30 ÷ +85
Colour grey
W 17
Klasa palności UL 94 HB
Name Allowable load daN Cable external diameter [mm] A B P
UI 4-8 8 4 ÷ 8 17 18 7 x 4
UI 8-12 10 8 ÷ 12 22 22 11 x 4
UI 12-16 14 12 ÷ 16 27 30 13 x 4
UI 16-23 18 16 ÷ 23 31 34 17 x 4
UI 20-25 22 20 ÷ 25 35 38 17 x 4
UI 25-32 30 25 ÷ 32 45 48 24 x 4
UI 32-40 40 32 ÷ 40 55 55 26 x 4
UI 40-50 50 40 ÷ 50 70 70 39 x 4

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Uchwyty_instalacyjne_typu_UI_EN.pdf EN 14-07-2025 177.37 KB PDF Download
Catalog card ERGOM_Uchwyty_instalacyjne_typu_UI_PL.pdf PL 14-07-2025 224.84 KB PDF Download
