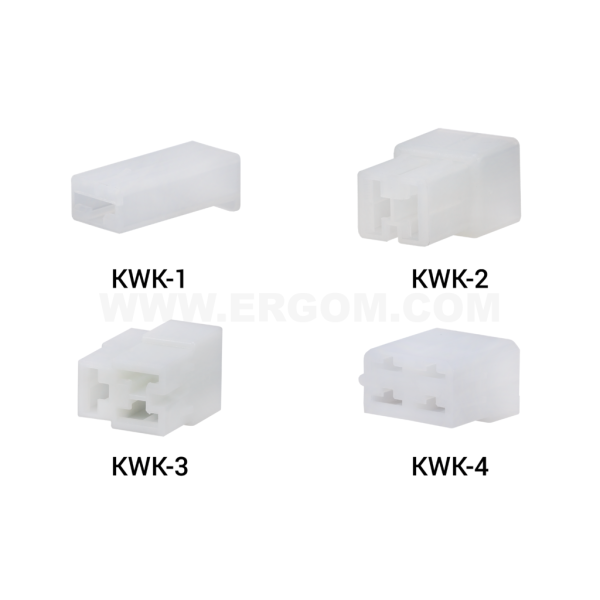

Housing of connector plug , KWK type

Housing of connector plug , KWK type

Main data of the product series

Product name: Housing of connector plug , KWK type
Category: Insulating covers

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
KWK-1	E10KN-01070501101	1	100	pkt.	Price on request
KWK-2	E10KN-01070501201	1	100	pkt.	Price on request
KWK-3	E10KN-01070501301	1	100	pkt.	Price on request
KWK-4	E10KN-01070501401	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Colour	natural (transparent)
Material	polyamide
Operating temperature [°C]	-30 ÷ +70
Rozmiar nasuwki konektorowej	6,3 x 0,8
Klasa palności	UL 94 V2

Name	Nr of contacts	S	L1	H	L
KWK-1	1	9,8	-	6,5	23
KWK-2	2	12,2	11,4	10,1	22,8
KWK-3	3	16,6	11,5	12,5	23
KWK-4	4	22,6	13,3	13,9	23,7

Guide

Housing of connector plug , KWK type

Housing of connector plug , KWK type

Housing of connector plug , KWK type

Housing of connector plug , KWK type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Kostki_wtyczek_konektorowych_typu_KWK_EN.pdf	EN	04-07-2025	494.91 KB	PDF	Download
Catalog card	ERGOM_Kostki_wtyczek_konektorowych_typu_KWK_PL.pdf	PL	04-07-2025	546.34 KB	PDF	Download
