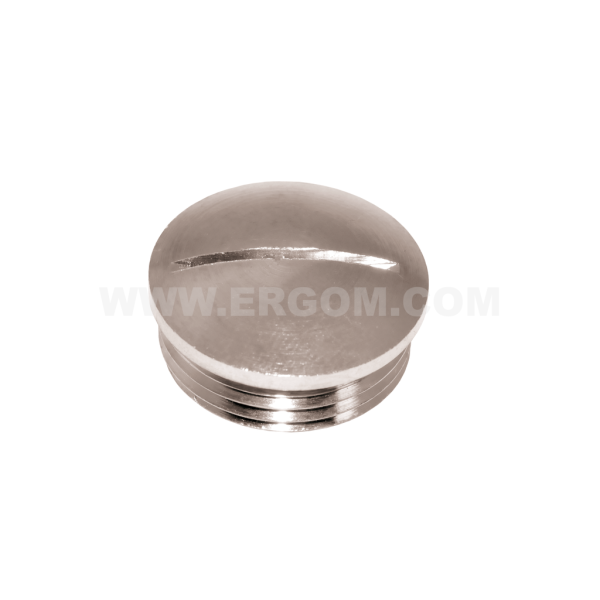

Hole plug, MDZW, MDZW...M type

Hole plug, MDZW, MDZW...M type

Main data of the product series

Product name: Hole plug, MDZW, MDZW...M type
Category: Metal accessories
Material: nickel-plated brass

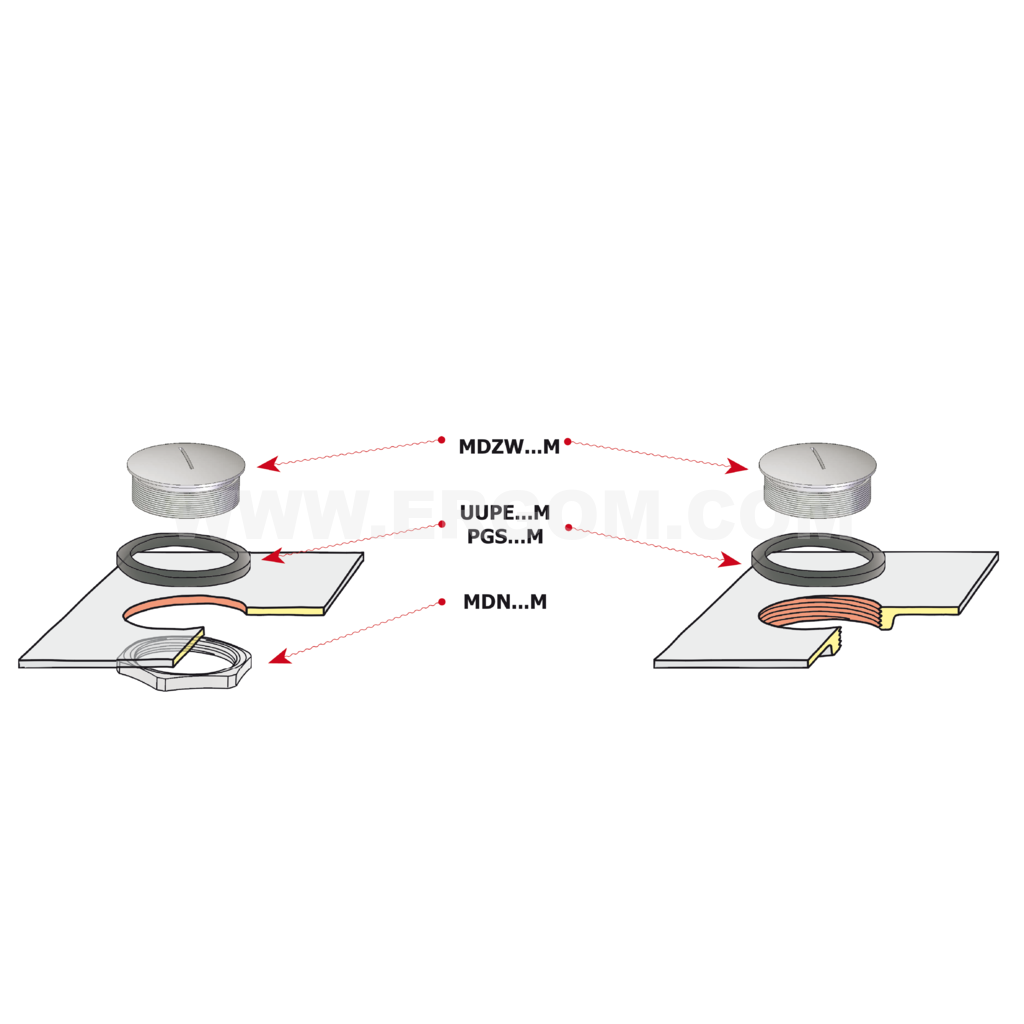

Note!: Nuts and hole plug seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MDZW 7	E03DK-04050300103	10	10	pcs.	Price on request
MDZW 9	E03DK-04050300203	10	10	pcs.	Price on request
MDZW 11	E03DK-04050300303	10	10	pcs.	Price on request
MDZW 13	E03DK-04050300403	10	10	pcs.	Price on request
MDZW 16	E03DK-04050300503	10	10	pcs.	Price on request
MDZW 21	E03DK-04050300603	10	10	pcs.	Price on request
MDZW 29	E03DK-04050300703	10	10	pcs.	Price on request
MDZW 36	E03DK-04050300803	10	10	pcs.	Price on request
MDZW 42	E03DK-04050300903	1	1	pcs.	Price on request
MDZW 48	E03DK-04050301003	1	1	pcs.	Price on request
MDZW 12M	E03DK-04050400103	10	10	pcs.	Price on request
MDZW 16M	E03DK-04050400203	10	10	pcs.	Price on request
MDZW 20M	E03DK-04050400303	10	10	pcs.	Price on request
MDZW 25M	E03DK-04050400403	10	10	pcs.	Price on request
MDZW 32M	E03DK-04050400503	10	10	pcs.	Price on request
MDZW 40M	E03DK-04050400603	10	10	pcs.	Price on request
MDZW 50M	E03DK-04050400703	1	1	pcs.	Price on request
MDZW 63M	E03DK-04050400803	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	nickel-plated brass

Name	M thread	PG thread	D	E	L
MDZW 7	-	PG7	14	5,5	2,5
MDZW 9	-	PG9	17	6,0	3,0
MDZW 11	-	PG11	20	6,0	3,0
MDZW 13	-	PG13,5	22	6,5	3,0
MDZW 16	-	PG16	24	6,5	3,0
MDZW 21	-	PG21	30	7,0	4,0
MDZW 29	-	PG29	39	8,0	4,0
MDZW 36	-	PG36	50	9,0	6,0
MDZW 42	-	PG42	57	10,0	6,0
MDZW 48	-	PG48	64	10,0	6,0
MDZW 12M	M12x1,5	-	16	5,0	2,5
MDZW 16M	M16x1,5	-	20	6,0	3,0
MDZW 20M	M20x1,5	-	24	6,5	3,0
MDZW 25M	M25x1,5	-	27	7,0	4,0
MDZW 32M	M32x1,5	-	34	8,0	4,0
MDZW 40M	M40x1,5	-	44	8,0	5,0
MDZW 50M	M50x1,5	-	54	9,0	5,0
MDZW 63M	M63x1,5	-	67	10,0	6,0

Guide

Hole plug, MDZW, MDZW...M type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Zaslepka_typu_MDZW_MDZW_M_EN.pdf	EN	07-10-2025	190.96 KB	PDF	Download
Catalog card	ERGOM_Zaslepka_typu_MDZW_MDZW_M_PL.pdf	PL	07-10-2025	231.79 KB	PDF	Download
