Hole plug, MDZ, MDZ...M type

Hole plug, MDZ, MDZ...M type

Main data of the product series

Product name
Hole plug, MDZ, MDZ...M type
Category
Metal accessories
Material
nickel-plated brass
Note!

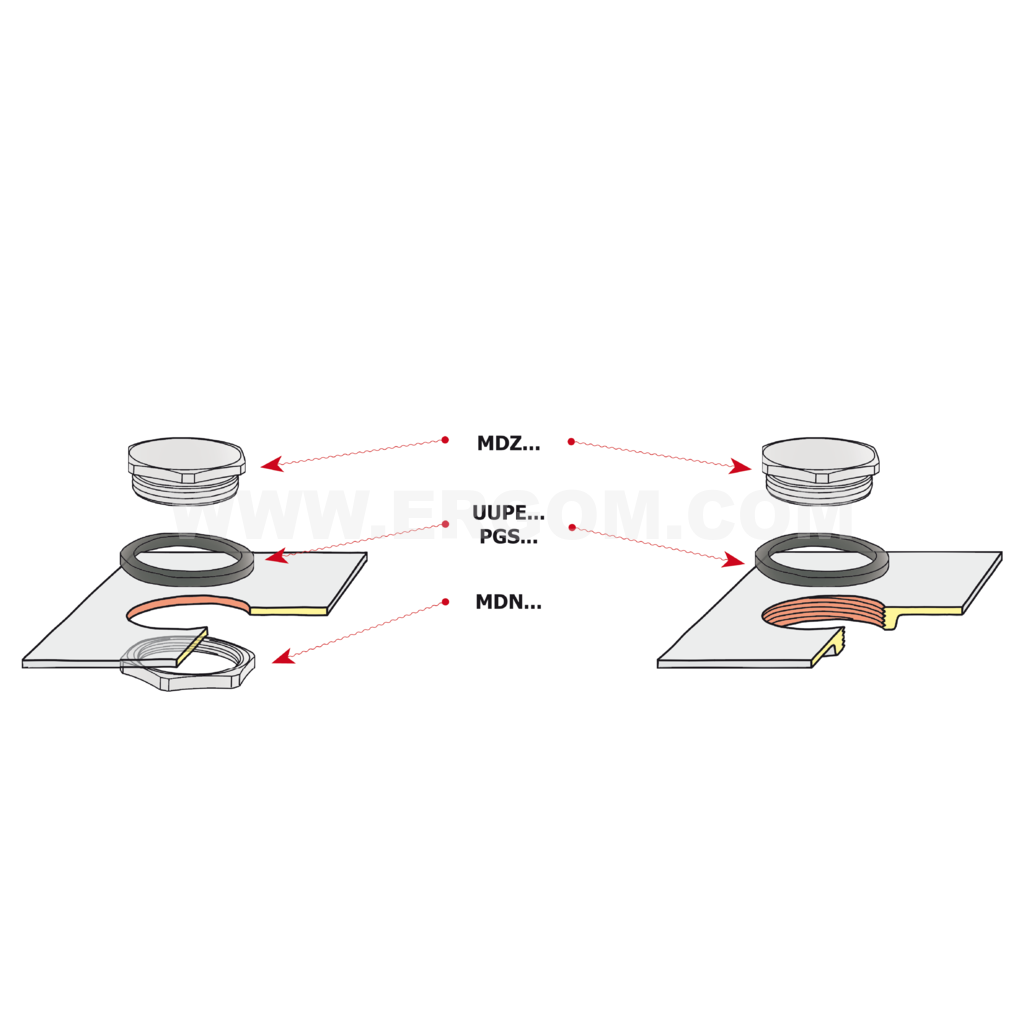

Nuts and hole plug seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDZ 7 E03DK-04050100103 10 10 pcs. Price on request
MDZ 9 E03DK-04050100203 10 10 pcs. Price on request
MDZ 11 E03DK-04050100303 10 10 pcs. Price on request
MDZ 13 E03DK-04050100403 10 10 pcs. Price on request
MDZ 16 E03DK-04050100503 10 10 pcs. Price on request
MDZ 21 E03DK-04050100603 10 10 pcs. Price on request
MDZ 29 E03DK-04050100703 10 10 pcs. Price on request
MDZ 36 E03DK-04050100803 10 10 pcs. Price on request
MDZ 42 E03DK-04050100903 1 1 pcs. Price on request
MDZ 48 E03DK-04050101003 1 1 pcs. Price on request
MDZ 12M E03DK-04050200103 10 10 pcs. Price on request
MDZ 16M E03DK-04050200203 10 10 pcs. Price on request
MDZ 20M E03DK-04050200303 10 10 pcs. Price on request
MDZ 25M E03DK-04050200403 10 10 pcs. Price on request
MDZ 32M E03DK-04050200503 10 10 pcs. Price on request
MDZ 40M E03DK-04050200603 10 10 pcs. Price on request
MDZ 50M E03DK-04050200703 1 1 pcs. Price on request
MDZ 63M E03DK-04050200803 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material nickel-plated brass
Name M thread PG thread E L For spanner A
MDZ 7 - PG7 6,5 2,5 15
MDZ 9 - PG9 6,5 2,5 18
MDZ 11 - PG11 7,0 3,0 21
MDZ 13 - PG13,5 7,0 3,0 23
MDZ 16 - PG16 7,0 3,0 26
MDZ 21 - PG21 8,0 3,5 32
MDZ 29 - PG29 8,5 4,0 41
MDZ 36 - PG36 8,5 4,0 51
MDZ 42 - PG42 10,0 5,0 58
MDZ 48 - PG48 11,0 5,5 64
MDZ 12M M12x1,5 - 6,5 2,5 15
MDZ 16M M16x1,5 - 6,5 2,5 18
MDZ 20M M20x1,5 - 6,5 3,0 23
MDZ 25M M25x1,5 - 7,0 3,0 28
MDZ 32M M32x1,5 - 8,0 3,5 36
MDZ 40M M40x1,5 - 8,0 4,0 44
MDZ 50M M50x1,5 - 9,0 4,5 54
MDZ 63M M63x1,5 - 10,0 5,5 67

Guide

Hole plug, MDZ, MDZ...M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zaslepka_typu_MDZ_MDZ_M_EN.pdf EN 14-05-2025 217.61 KB PDF Download
Catalog card ERGOM_Zaslepka_typu_MDZ_MDZ_M_PL.pdf PL 14-05-2025 259.38 KB PDF Download
