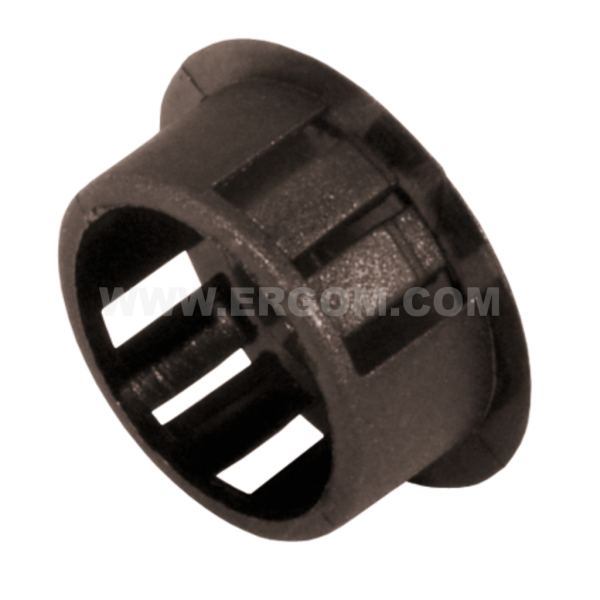

Hole plug, HP type

Hole plug, HP type

Main data of the product series

Product name
Hole plug, HP type
Category
Cable grommets
Operating temperature [°C]
-40 ÷ +85
Material
polyamide 6.6
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
HP-8 E01PK-01090100101 1 100 pkt. Price on request
HP-11 E01PK-01090100250 1 100 pkt. Price on request
HP-13 E01PK-01090100301 1 100 pkt. Price on request
HP-19 E01PK-01090100501 1 100 pkt. Price on request
HP-20 E01PK-01090100550 1 100 pkt. Price on request
HP-22 E01PK-01090100601 1 100 pkt. Price on request
HP-25 E01PK-01090100701 1 100 pkt. Price on request
HP-30 E01PK-01090100801 1 100 pkt. Price on request
HP-11 WT E01PK-01090110250 1 100 pkt. Price on request
HP-20 WT E01PK-01090110550 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Operating temperature [°C] -40 ÷ +85
Klasa palności UL 94 V2
Name Colour A C L
HP-8 black 7,9 11,9 8,0
HP-11 black 11,1 15,0 10,5
HP-13 black 12,7 16,9 10,5
HP-19 black 19,1 22,9 10,5
HP-20 black 19,6 24,0 10,5
HP-22 black 22,0 24,9 11,3
HP-25 black 25,1 28,3 11,5
HP-30 black 30,0 34,2 11,5
HP-11 WT white 11,1 15,0 10,5
HP-20 WT white 19,6 24,0 10,5

Guide

Hole plug, HP type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zaslepka_typu_HP_EN.pdf EN 14-05-2025 179.71 KB PDF Download
Catalog card ERGOM_Zaslepka_typu_HP_PL.pdf PL 14-05-2025 219.15 KB PDF Download
