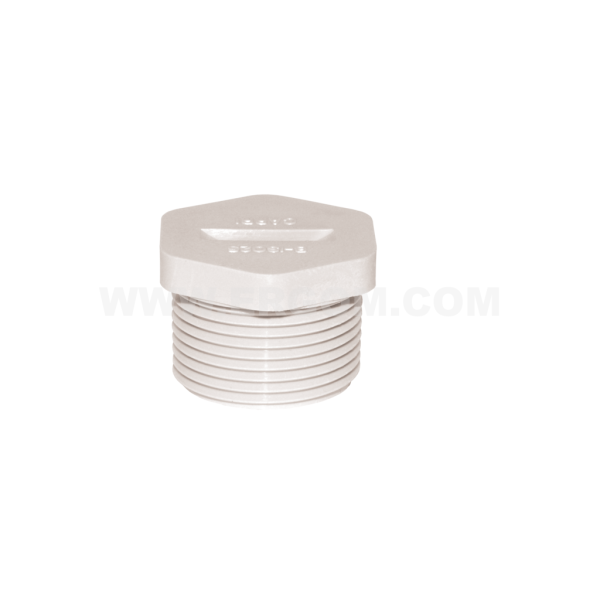

Hole plug, DZ, DZ...M type

Hole plug, DZ, DZ...M type

Main data of the product series

Product name
Hole plug, DZ, DZ...M type
Category
Plastic accessories
Material
polyamide 6
Operating temperature [°C]
-30 ÷ +80
Colour
grey (RAL 7035)
Note!

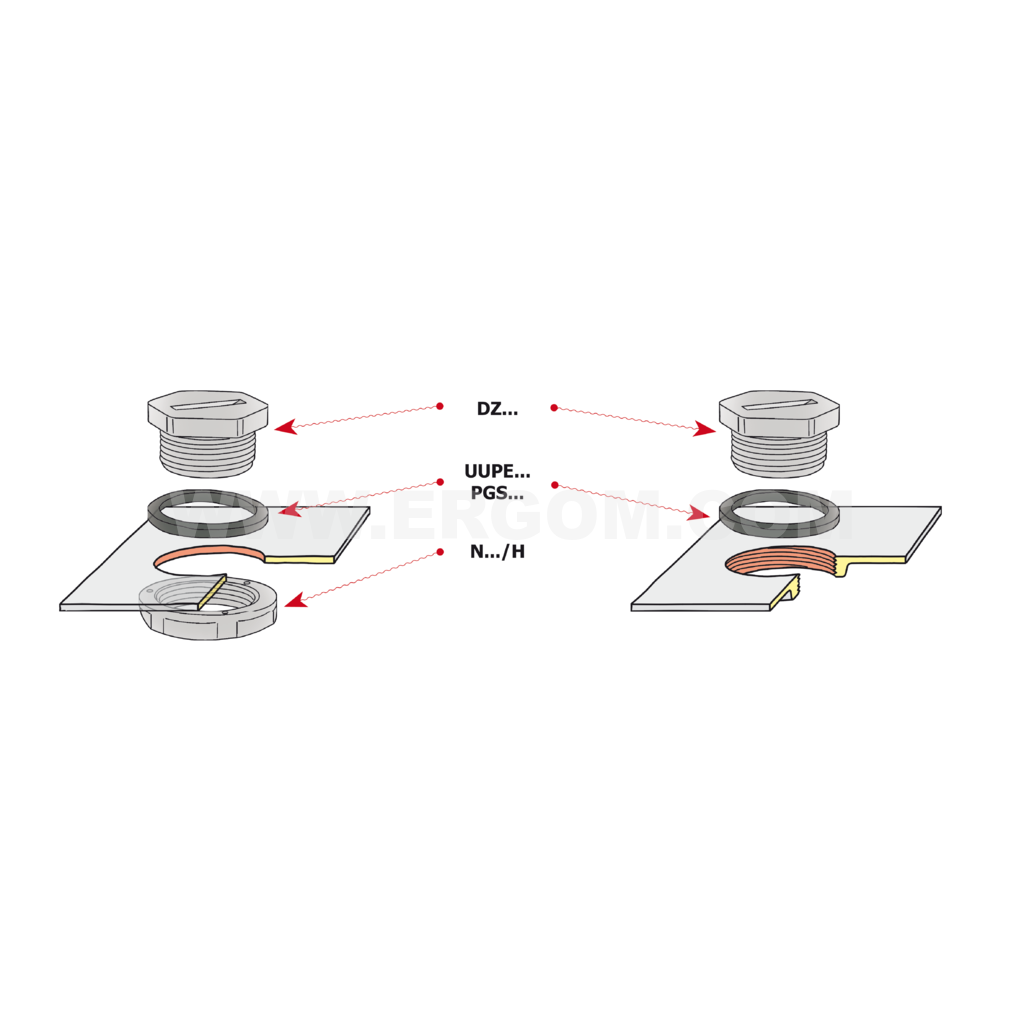

Nuts and seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DZ 7 E03DK-02110100103 10 10 pcs. Price on request
DZ 42 E03DK-02110100903 1 1 pcs. Price on request
DZ 48 E03DK-02110101003 1 1 pcs. Price on request
DZ 12M E03DK-02110200103 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Colour grey (RAL 7035)
Operating temperature [°C] -30 ÷ +80
M thread M12x1,5
Name PG thread E L For spanner A
DZ 7 PG7 8,0 4,0 15
DZ 42 PG42 15,0 6,5 59
DZ 48 PG48 10,0 6,5 64
DZ 12M - 15,0 4,0 15

Guide

Hole plug, DZ, DZ...M type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zaslepka_typu_DZ_DZ_M_EN.pdf EN 14-05-2025 174 KB PDF Download
Catalog card ERGOM_Zaslepka_typu_DZ_DZ_M_PL.pdf PL 14-05-2025 212.87 KB PDF Download
