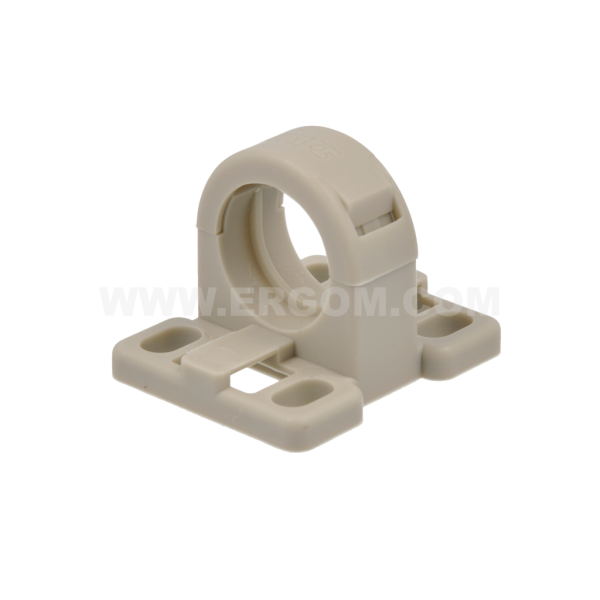

Holders, URE type

Holders, URE type

Main data of the product series

Product name: Holders, URE type
Category: Conduits and holders
Material: polyamide 6, RoHS

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
URE 16	E03DK-07500020501	10	10	pcs.	Price on request
URE 29	E03DK-07500020701	10	10	pcs.	Price on request
URE 36	E03DK-07500020801	10	10	pcs.	Price on request
URE 48	E03DK-07500020901	5	5	pcs.	Price on request

Selected lines: 0

Technical data

General data

Colour	grey RAL 7035
Material	polyamide 6, RoHS
Operating temp. [°C]	-20 ÷ +120
Assembly	URE holders are screwed to the RN box door rail directly with Ø5.5 x 12 mm tapping screws or to an enclosure wall, with a WUR 1 bracket (sizes 16 and 29) or WUR 2 bracket (sizes 36 and 48).
W	5

Name	RKR tube, dimension D [mm]	A	B	C	D	E	F	H	K	M	N
URE 16	21,2	37	44	14	21,2	25	-	34	18,5	33	25
URE 29	34,5	44,7	44	14	34,5	25	-	47,5	25	33	25
URE 36	42,5	62	61	28	42,5	50	25	56,5	29	50	40
URE 48	54,5	67,8	61	28	54,5	50	25	69	35	50	40

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Uchwyty_typu_URE_EN.pdf	EN	15-05-2025	209.52 KB	PDF	Download
Catalog card	ERGOM_Uchwyty_typu_URE_PL.pdf	PL	15-05-2025	231.61 KB	PDF	Download
