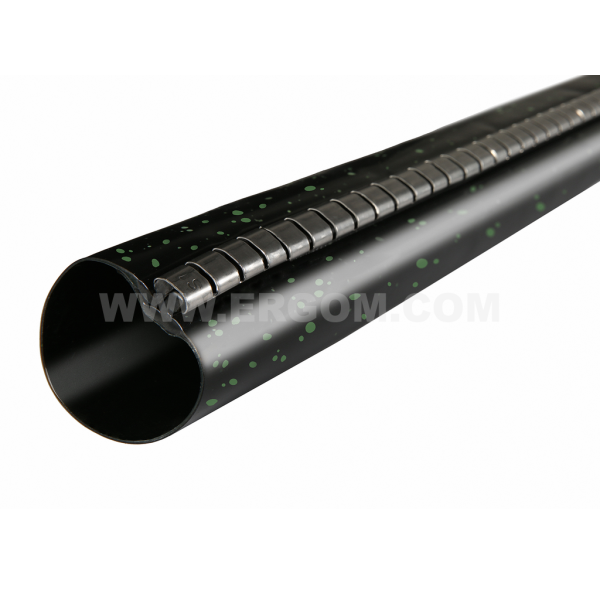

Heat-shrink panels, PLT type

Heat-shrink panels, PLT type

Main data of the product series

Product name
Heat-shrink panels, PLT type
Category
Heat-shrink materials
Operating temperature [°C]
-25 ÷ +110
Shrinkage factor
3,5:1
Recommended shrinking temperature [°C]
100 ÷ 125
Material
cross linked polyolefin with hot melt adhesive

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
PLT 50/15 E05ME-01070100101 1 1 pcs. Price on request
PLT 75/22 E05ME-01070100201 1 1 pcs. Price on request
PLT 105/30 E05ME-01070100301 1 1 pcs. Price on request
PLT 122/38 E05ME-01070100401 1 1 pcs. Price on request
PLT 170/58 E05ME-01070100601 1 1 pcs. Price on request
PLT 210/55 E05ME-01070100801 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Breakdown strength [kV/mm] 10
Material cross linked polyolefin with hot melt adhesive
Halogen-free yes
UV Resistance yes
Recommended shrinking temperature [°C] 100 ÷ 125
Operating temperature [°C] -25 ÷ +110
Shrinkage factor 3,5:1
Colour black
Wall thickness on full shrinkage - s [mm] 2,5
Length [m] 1
Name Inside diameter on delivery D [mm] Inside diameter in full shrinkage d [mm]
PLT 50/15 54 9
PLT 75/22 75 19
PLT 105/30 104 29
PLT 122/38 138 37
PLT 170/58 188 48
PLT 210/55 238 52

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Platy_termokurczliwe_typu_PLT_EN.pdf EN 14-05-2025 252.61 KB PDF Download
Catalog card ERGOM_Platy_termokurczliwe_typu_PLT_PL.pdf PL 14-05-2025 269.23 KB PDF Download
