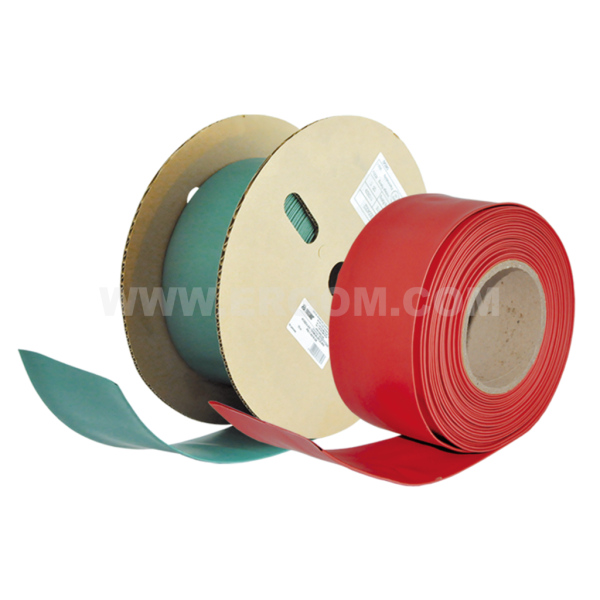

Heat-shrink insulating tubes, RIS type

Heat-shrink insulating tubes, RIS type

Main data of the product series

Product name
Heat-shrink insulating tubes, RIS type
Category
Busbar insulation
Material
cross-linked polyethylene

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
RIS-1 50/22 YL R32RZ-07020100401 15 15 m. Price on request
RIS-1 60/25 RD R32RZ-07020100681 15 15 m. Price on request
RIS-1 70/28 GR R32RZ-07020100801 15 15 m. Price on request
RIS-1 100/40 YL R32RZ-07020101001 15 15 m. Price on request
RIS-1 100/40 GR R32RZ-07020101101 15 15 m. Price on request
RIS-1 100/40 VL R32RZ-07020101201 15 15 m. Price on request

Selected lines: 0

Technical data

General data

Volume resistivity [Ωcm] 1,0 x 10<sup>15</sup>
1-minute strength [kV AC] 42
Dielectric strength [kV/mm] 30
Impulse withstand strength [kV, peak] 75
Material cross-linked polyethylene
Operating temp. [°C] -55 ÷ +125
Wall thickness on full shrinkage - s [mm] 1,0
Max. shrinking temperature [ºC] +200
Name Colour Inside diameter on full shrinkage d [mm] Inside diameter before shrinkage D [mm] Rated voltage [kV]
RIS-1 50/22 YL yellow 24 50 -
RIS-1 60/25 RD red 31 60 1
RIS-1 70/28 GR green 34 70 1
RIS-1 100/40 YL yellow 49 100 1
RIS-1 100/40 GR green 49 100 1
RIS-1 100/40 VL violet 49 100 1

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Termokurczliwe_rury_izolacyjne_typ_RIS_EN.pdf EN 15-05-2025 232.25 KB PDF Download
Catalog card ERGOM_Termokurczliwe_rury_izolacyjne_typ_RIS_PL.pdf PL 15-05-2025 231.37 KB PDF Download
