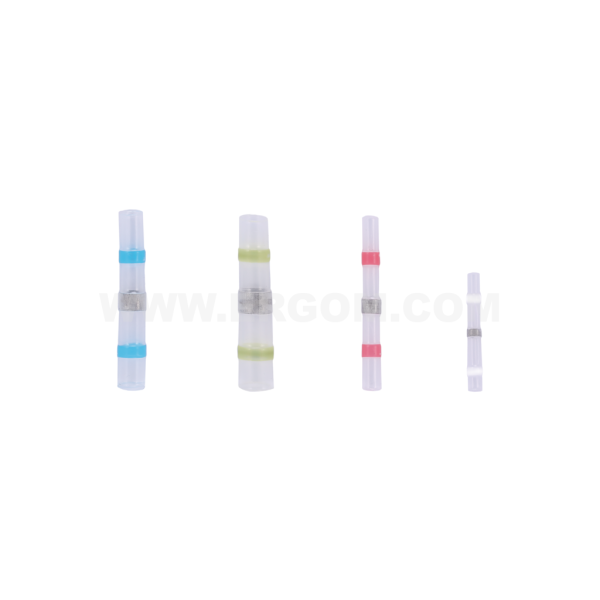

Heat shrink connectors with tin, ZIT type

Heat shrink connectors with tin, ZIT type

Main data of the product series

Product name: Heat shrink connectors with tin, ZIT type
Category: Heat-shrink insulation
Insulation: heat-shrink sleeve

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
ZIT 0,34	E09KO-02080100101	1	100	pkt.	Price on request
ZIT 1	E09KO-02080100201	1	100	pkt.	Price on request
ZIT 2,5	E09KO-02080100301	1	100	pkt.	Price on request
ZIT 6	E09KO-02080100401	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Breakdown voltage [V]	600
Insulation	heat-shrink sleeve
Shrinkage factor	2:1
Operating temperature [°C]	-55 ÷ +125
Shrink temperature [°C]	> 140

Name	Colour	L	Ø Dmin	Cross-section [mm²]
ZIT 0,34	white	26	1,7	0,25÷0,34
ZIT 1	red	40	2,7	0,5÷1,0
ZIT 2,5	blue	40	4,5	1,5÷2,5
ZIT 6	yellow	40	6,0	4÷6

Guide

Heat shrink connectors with tin, ZIT type — 1 - koszulka termokurczliwa 2 - cyna 3 - klej

Heat shrink connectors with tin, ZIT type — -

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Laczniki_termokurczliwe_z_cyna_typu_ZIT_EN.pdf	EN	04-07-2025	223.14 KB	PDF	Download
Catalog card	ERGOM_Laczniki_termokurczliwe_z_cyna_typu_ZIT_PL.pdf	PL	04-07-2025	264.3 KB	PDF	Download
