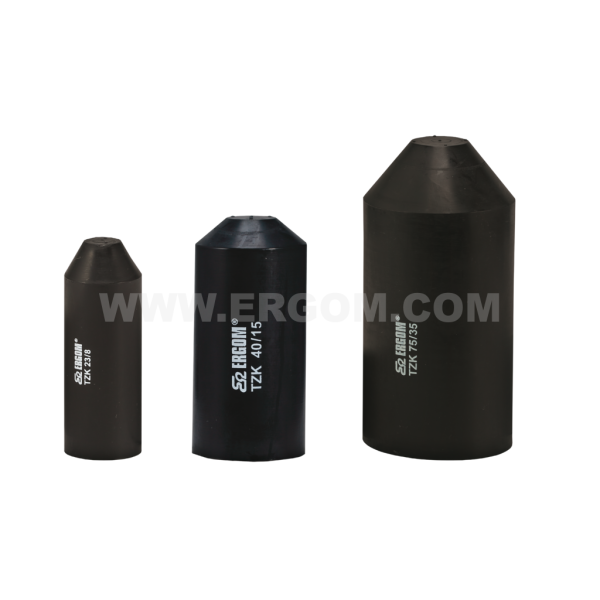

Heat-shrink caps, TZK type

Heat-shrink caps, TZK type

Main data of the product series

Product name
Heat-shrink caps, TZK type
Category
Heat-shrink materials
Shrinkage factor
2:1 do 3:1
Operating temperature [°C]
-40 ÷ +110
Recommended shrinking temperature [°C]
100 ÷ 125
Material
cross linked polyolefin with hot melt adhesive

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TZK 10/4 E05ME-01050100103 10 10 pcs. Price on request
TZK 14/4 E05ME-01050100203 10 10 pcs. Price on request
TZK 16/8 E05ME-01050100303 10 10 pcs. Price on request
TZK 23/8 E05ME-01050100603 10 10 pcs. Price on request
TZK 33/15 E05ME-01050100703 10 10 pcs. Price on request
TZK 40/15 E05ME-01050100803 10 10 pcs. Price on request
TZK 44/15 E05ME-01050100853 10 10 pcs. Price on request
TZK 52/25 E05ME-01050100903 10 10 pcs. Price on request
TZK 63/25 E05ME-01050100953 10 10 pcs. Price on request
TZK 75/35 E05ME-01050101023 10 10 pcs. Price on request
TZK 83/35 E05ME-01050101053 10 10 pcs. Price on request
TZK 90/45 E05ME-01050101103 10 10 pcs. Price on request
TZK 120/45 E05ME-01050101203 10 10 pcs. Price on request
TZK 120/60 E05ME-01050101223 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Breakdown strength [kV/mm] 12
Material cross linked polyolefin with hot melt adhesive
Halogen-free yes
UV Resistance yes
Recommended shrinking temperature [°C] 100 ÷ 125
Operating temperature [°C] -40 ÷ +110
Shrinkage factor 2:1 do 3:1
Colour black
Name Inside diameter on delivery D [mm] Inside diameter in full shrinkage d [mm] Length in delivery L [mm] Wall thickness on full shrinkage - s [mm]
TZK 10/4 10 4 58 2,3
TZK 14/4 14 4 58 2,3
TZK 16/8 16 8 75 2,9
TZK 23/8 24 8 75 2,5
TZK 33/15 35 11 75 2,5
TZK 40/15 40 15 90 3,5
TZK 44/15 44 15 90 3,6
TZK 52/25 53 25 125 3,5
TZK 63/25 60 25 125 3,8
TZK 75/35 74 35 150 4,0
TZK 83/35 83 35 140 3,6
TZK 90/45 98 45 160 4,0
TZK 120/45 120 45 200 4,0
TZK 120/60 128 60 160 4,6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Kapturki_termokurczliwe_TZK_EN.pdf EN 14-05-2025 276.46 KB PDF Download
Catalog card ERGOM_Kapturki_termokurczliwe_TZK_PL.pdf PL 14-05-2025 301.55 KB PDF Download
