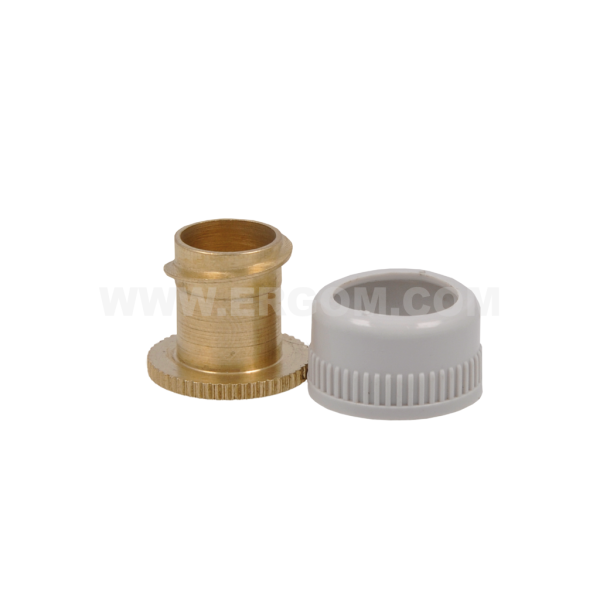

Grounding insert, WE type

Grounding insert, WE type

Main data of the product series

Product name
Grounding insert, WE type
Category
Accessories for steel conduits
Material
brass+poliethylene
Operating temperature [°C]
-30 ÷ +80
Note!
WE inserts for MWO connectors with metric threads are selected WO, WOT conduits.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WE 7 E03DK-08040100103 10 10 pcs. Price on request
WE 9 E03DK-08040100203 10 10 pcs. Price on request
WE 11 E03DK-08040100303 10 10 pcs. Price on request
WE 13 E03DK-08040100403 10 10 pcs. Price on request
WE 16 E03DK-08040100503 10 10 pcs. Price on request
WE 21 E03DK-08040100603 10 10 pcs. Price on request
WE 29 E03DK-08040100703 10 10 pcs. Price on request
WE 36 E03DK-08040100803 1 1 pcs. Price on request
WE 48 E03DK-08040100903 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material brass+poliethylene
Halogen-free yes
Operating temperature [°C] -30 ÷ +80
Name Gland type
WE 7 MWO 7, MWO 12M/7, MWO 7 S
WE 9 MWO 9, MWO 16M/9, MWO 9 S
WE 11 MWO 11, MWO 20M/11, MWO 11 S
WE 13 MWO 13, MWO 20M/13, MWO 13 S
WE 16 MWO 16, MWO 25M/16, MWO 16 S
WE 21 MWO 21, MWO 25M/21, MWO 32M/21, MWO 21 S
WE 29 MWO 29, MWO 32M/29, MWO 40M/29, MWO 29 S
WE 36 MWO 36, MWO 40M/36, MWO 50M/36, MWO 36 S
WE 48 MWO 48, MWO 63M/48, MWO 48 S NFC

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Wkladka_uziemniajaca_typu_WE_EN.pdf EN 14-05-2025 138.67 KB PDF Download
Catalog card ERGOM_Wkladka_uziemniajaca_typu_WE_PL.pdf PL 14-05-2025 178.2 KB PDF Download
