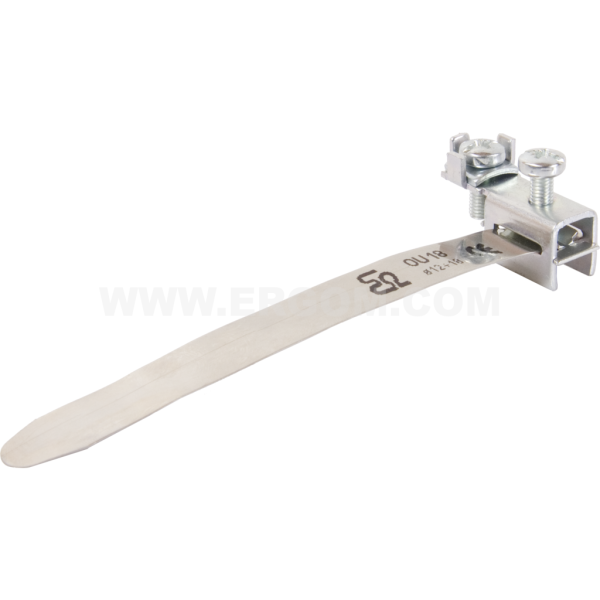

Grounding clamps, OU 18 - OU 165 type

Grounding clamps, OU 18 - OU 165 type

Main data of the product series

Product name: Grounding clamps, OU 18 - OU 165 type
Category: Grounding clamps
Standards: EN 60999

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
OU 18	R33RA-04030100113	10	10	pcs.	Price on request
OU 50	R33RA-04030100123	10	10	pcs.	Price on request
OU 120	R33RA-04030100133	10	10	pcs.	Price on request
OU 165	R33RA-04030100143	10	10	pcs.	Price on request

Selected lines: 0

Technical data

General data

Number of clamps x cross-section [mm²]	1x2,5÷16
Bolt material	galvanised steel
Clamp material	galvanised steel
Tie material	stainless steel
Recommended screwdriver tip type (flat)	7/1,2
Recommended screwdriver tip type (cross)	PZ2
Normy	EN 60999

Name	Max. diameter of earthing part [mm]	Recommended tightening torque [Nm]	Tie length [mm]	Tie width [mm]
OU 18	18	2,6	136	14
OU 50	50	4,6	209	20
OU 120	120	4,6	425	20
OU 165	165	4,6	583	20

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Opaski_uziemiajace_OU_18_OU_165_EN.pdf	EN	26-09-2025	198.06 KB	PDF	Download
Catalog card	ERGOM_Opaski_uziemiajace_OU_18_OU_165_PL.pdf	PL	15-05-2025	223.71 KB	PDF	Download
