Hi, Please log in

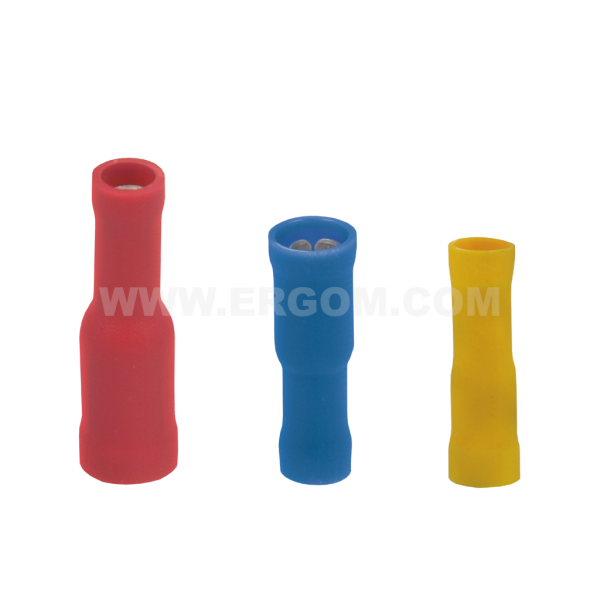

Fully insulated receptacles, GCI...PCV type

Main data of the product series

Product name: Fully insulated receptacles, GCI...PCV type
Category: For double crimping (with copper sleeve)
Operating temperature [°C]: -5 ÷ +60
Insulation: polyvinyl chloride (PVC)
Surface: tin-plated
Material: brass

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
GCI 1/4 PCV	E10KN-03030300101	1	100	pkt.	Price on request
GCI 2,5/4 PCV	E10KN-03030300201	1	100	pkt.	Price on request
GCI 2,5/5 PCV	E10KN-03030300301	1	100	pkt.	Price on request
GCI 6/5 PCV	E10KN-03030300401	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyvinyl chloride (PVC)
Material	brass
Surface	tin-plated
Operating temperature [°C]	-5 ÷ +60

Name	Insulation colour	L₁	L₂	d₁	d₂	Cross-section [mm²]
GCI 1/4 PCV	red	25,0	7,3	1,7	3,9	0,75÷1
GCI 2,5/4 PCV	blue	25,0	7,3	2,3	3,9	1,5÷2,5
GCI 2,5/5 PCV	blue	25,0	8,5	2,3	4,9	1,5÷2,5
GCI 6/5 PCV	yellow	28,0	8,5	3,4	4,9	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Gniazda_calkowicie_izolowane_GCI…PCV_EN.pdf	EN	04-07-2025	224.81 KB	PDF	Download
Catalog card	ERGOM_Gniazda_calkowicie_izolowane_GCI…PCV_PL.pdf	PL	04-07-2025	244.57 KB	PDF	Download
