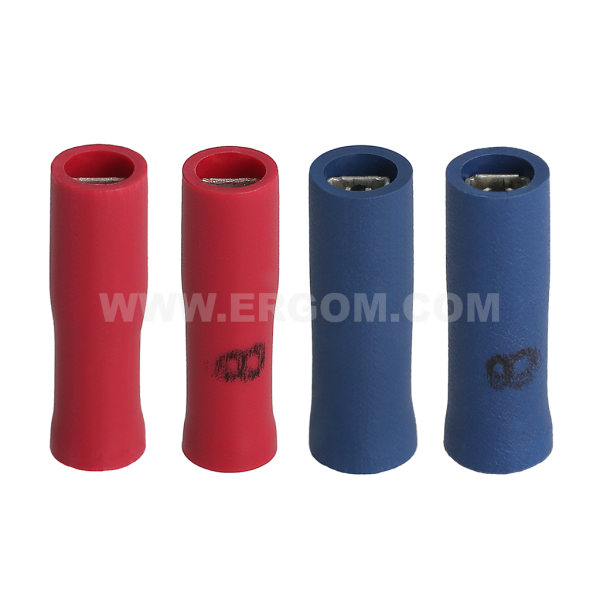

Fully insulated push-on female connectors, NCI...PCV type

EASY ENTRY

Main data of the product series

Product name
Fully insulated push-on female connectors, NCI...PCV type
Category
For double crimping (with copper sleeve)
Operating temperature [°C]
-5 ÷ +60
Surface
tin-plated
Material
brass
Insulation
polyvinyl chloride (PVC)

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NCI 2,8-1/0,5 PCV E10KN-03010302001 1 100 pkt. Price on request
NCI 2,8-1/0,8 PCV E10KN-03010302101 1 100 pkt. Price on request
NCI 2,8-2,5/0,5 PCV E10KN-03010302201 1 100 pkt. Price on request
NCI 2,8-2,5/0,8 PCV E10KN-03010302301 1 100 pkt. Price on request
NCI 4,8-1/0,5 PCV E10KN-03010302401 1 100 pkt. Price on request
NCI 4,8-1/0,8 PCV E10KN-03010302501 1 100 pkt. Price on request
NCI 4,8-2,5/0,5 PCV E10KN-03010302601 1 100 pkt. Price on request
NCI 4,8-2,5/0,8 PCV E10KN-03010302701 1 100 pkt. Price on request
NCI 6,3-1/0,8 PCV E10KN-03010302801 1 100 pkt. Price on request
NCI 6,3-2,5/0,8 PCV E10KN-03010302901 1 100 pkt. Price on request
NCI 6,3-6/0,8 PCV E10KN-03010303001 1 100 pkt. Price on request
NCI 9,5-6/1,2 PCV E10KN-03010303101 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation polyvinyl chloride (PVC)
Material brass
Surface tin-plated
Operating temperature [°C] -5 ÷ +60
Name Insulation colour Size d L1 L2 Cross-section [mm²]
NCI 2,8-1/0,5 PCV red 2,8x0,5 1,7 20,0 6,5 0,75÷1
NCI 2,8-1/0,8 PCV red 2,8x0,8 1,7 20,0 6,5 0,75÷1
NCI 2,8-2,5/0,5 PCV blue 2,8x0,5 2,3 20,0 6,5 1,5÷2,5
NCI 2,8-2,5/0,8 PCV blue 2,8x0,8 2,3 20,0 6,5 1,5÷2,5
NCI 4,8-1/0,5 PCV red 4,8x0,5 1,7 20,5 6,5 0,75÷1
NCI 4,8-1/0,8 PCV red 4,8x0,8 1,7 20,5 6,5 0,75÷1
NCI 4,8-2,5/0,5 PCV blue 4,8x0,5 2,3 20,0 6,5 1,5÷2,5
NCI 4,8-2,5/0,8 PCV blue 4,8x0,8 2,3 20,0 6,5 1,5÷2,5
NCI 6,3-1/0,8 PCV red 6,3x0,8 1,7 22,0 7,2 0,75÷1
NCI 6,3-2,5/0,8 PCV blue 6,3x0,8 2,3 22,0 7,2 1,5÷2,5
NCI 6,3-6/0,8 PCV yellow 6,3x0,8 3,4 24,0 7,2 4÷6
NCI 9,5-6/1,2 PCV yellow 9,5x1,2 3,3 30,5 12,0 4÷6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nasuwki_calkowicie_izolowane_NCI_PCV_EN.pdf EN 16-07-2025 259.85 KB PDF Download
Catalog card ERGOM_Nasuwki_calkowicie_izolowane_NCI_PCV_PL.pdf PL 16-07-2025 280.8 KB PDF Download
