Home Products Products Cable terminals Insulated connectors For double crimping (with copper sleeve) Fully insulated piggyback female push-on connectors, NWCI type

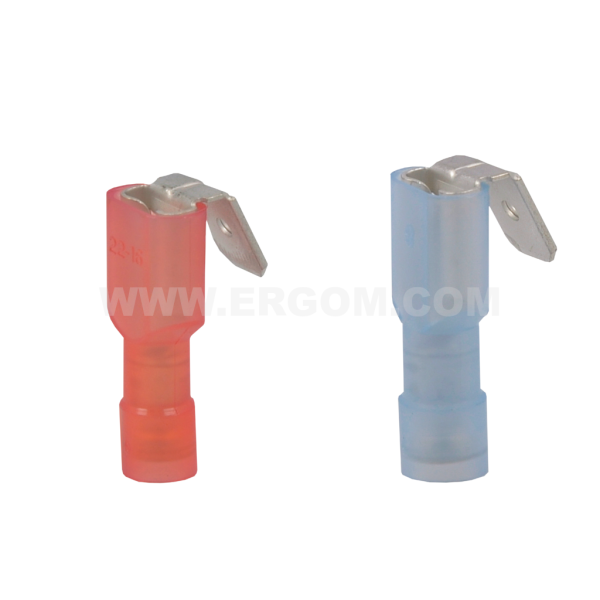

Fully insulated piggyback female push-on connectors, NWCI type

Main data of the product series

Product name: Fully insulated piggyback female push-on connectors, NWCI type
Category: For double crimping (with copper sleeve)
Operating temperature [°C]: -30 ÷ +95
Insulation: polyamide 6.6
Surface: tin-plated
Material: brass

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
NWCI 6,3-1/0,8	E10KN-03010700101	1	100	pkt.	Price on request
NWCI 6,3-2,5/0,8	E10KN-03010700201	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyamide 6.6
Material	brass
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +95
Size	6,3x0,8
L₁	21,5
L₂	8,0
C	8,2

Name	Insulation colour	d	Cross-section [mm²]
NWCI 6,3-1/0,8	red	1,7	0,75÷1
NWCI 6,3-2,5/0,8	blue	2,3	1,5÷2,5

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Nasuwki_z_odgalezieniem_calkowicie_izolowane_NWCI_EN.pdf	EN	04-07-2025	308.85 KB	PDF	Download
Catalog card	ERGOM_Nasuwki_z_odgalezieniem_calkowicie_izolowane_NWCI_PL.pdf	PL	04-07-2025	327.89 KB	PDF	Download
