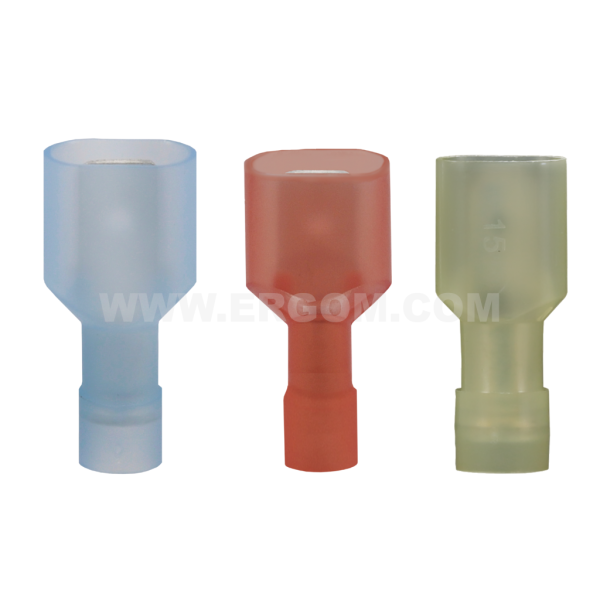

Fully insulated male push-on connectors, WCI type

Main data of the product series

Product name: Fully insulated male push-on connectors, WCI type
Category: For double crimping (with copper sleeve)
Operating temperature [°C]: -30 ÷ +95
Insulation: polyamide 6.6
Surface: tin-plated
Material: brass

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
WCI 6,3-1/0,8	E10KN-03020300101	1	100	pkt.	Price on request
WCI 6,3-2,5/0,8	E10KN-03020300201	1	100	pkt.	Price on request
WCI 6,3-6/0,8	E10KN-03020300301	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyamide 6.6
Material	brass
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +95
Size	6,3x0,8
L₁	7,9

Name	Insulation colour	d	L₂	Cross-section [mm²]
WCI 6,3-1/0,8	red	1,7	23,5	0,75÷1
WCI 6,3-2,5/0,8	blue	2,3	23,5	1,5÷2,5
WCI 6,3-6/0,8	yellow	3,4	27	4÷6

Guide

Fully insulated male push-on connectors, WCI type

Fully insulated male push-on connectors, WCI type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wsuwki_calkowicie_izolowane_WCI_EN.pdf	EN	04-07-2025	362.56 KB	PDF	Download
Catalog card	ERGOM_Wsuwki_calkowicie_izolowane_WCI_PL.pdf	PL	04-07-2025	381.61 KB	PDF	Download
