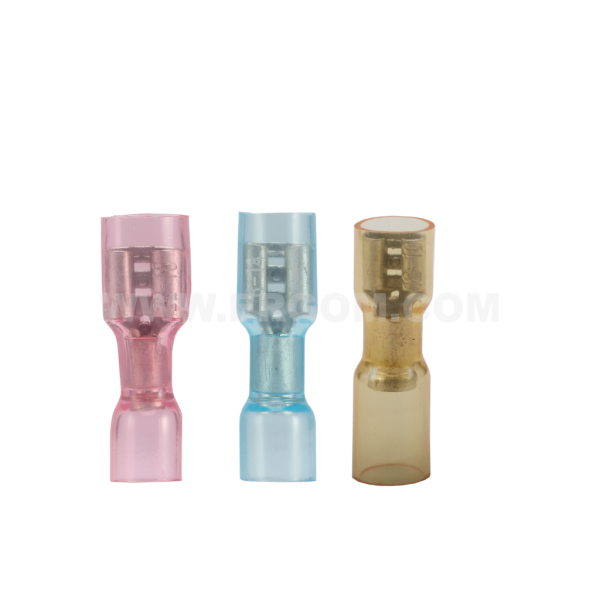

Fully insulated female push-on connectors in heat-shrink insulation, NCIT type

Fully insulated female push-on connectors in heat-shrink insulation, NCIT type

Main data of the product series

Product name
Fully insulated female push-on connectors in heat-shrink insulation, NCIT type
Category
For double crimping (with copper sleeve)
Surface
tin-plated
Material
brass
Insulation
heat-shrink sleeve
Operating temperature [°C]
-55 ÷ +125

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NCIT 6,3-1/0,8 E09KO-02070600201 1 100 pkt. Price on request
NCIT 6,3-2,5/0,8 E09KO-02070600301 1 100 pkt. Price on request
NCIT 6,3-6/0,8 E09KO-02070600401 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation heat-shrink sleeve
Material brass
Surface tin-plated
Operating temperature [°C] -55 ÷ +125
Shrink temperature [°C] > 120
Size 6,3x0,8
L2 7,2
Name Insulation colour d D L1 L3 Cross-section [mm²]
NCIT 6,3-1/0,8 red 1,7 6,2 30 21 0,75 - 1
NCIT 6,3-2,5/0,8 blue 2,3 6,2 30 21 1,5 - 2,5
NCIT 6,3-6/0,8 yellow 3,4 7,0 32 25 4 - 6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nasuwki_konektorowe_calkowicie_izolowane_w_izolacji_typu_NCIT_EN.pdf EN 04-07-2025 198.95 KB PDF Download
Catalog card ERGOM_Nasuwki_konektorowe_calkowicie_izolowane_w_izolacji_typu_NCIT_PL.pdf PL 04-07-2025 217.72 KB PDF Download
