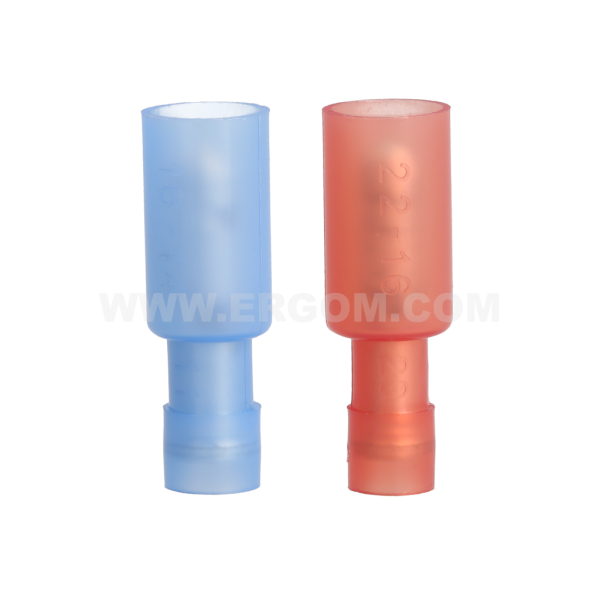

Fully insulated bullet connectors, WCI... type

Main data of the product series

Product name: Fully insulated bullet connectors, WCI... type
Category: For double crimping (with copper sleeve)
Operating temperature [°C]: -30 ÷ +95
Insulation: polyamide 6.6
Surface: tin-plated
Material: brass

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
WCI 1/4	E10KN-03040300101	1	100	pkt.	Price on request
WCI 2,5/4	E10KN-03040300201	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyamide 6.6
Material	brass
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +95
L₁	25,0
L₂	9,2
d₂	4,0

Name	Insulation colour	d₁	Cross-section [mm²]
WCI 1/4	red	1,8	0,75÷1
WCI 2,5/4	blue	2,4	1,5÷2,5

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wtyki_calkowicie_izolowane_WCI_…_EN.pdf	EN	04-07-2025	210.78 KB	PDF	Download
Catalog card	ERGOM_Wtyki_calkowicie_izolowane_WCI_…_PL.pdf	PL	04-07-2025	230.49 KB	PDF	Download
