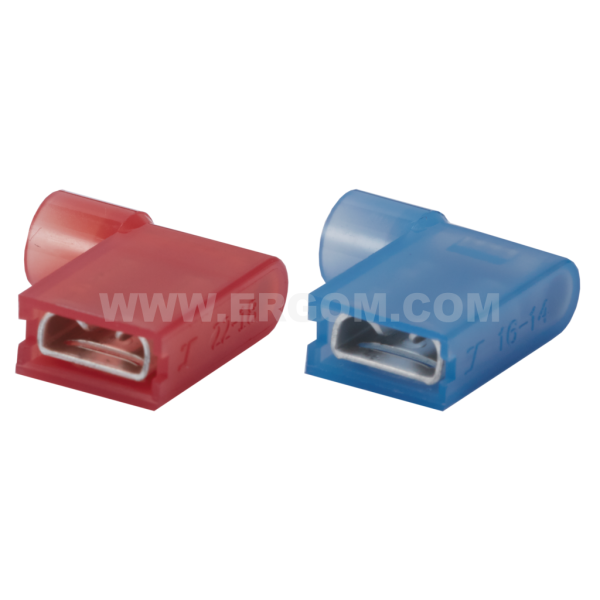

Fully insulated angle female push-on connectors, NKCI type

Fully insulated angle female push-on connectors, NKCI type

Main data of the product series

Product name
Fully insulated angle female push-on connectors, NKCI type
Category
For single crimping
Operating temperature [°C]
-30 ÷ +95
Insulation
polyamide 6.6
Surface
tin-plated
Material
brass

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NKCI 6,3-1/0,8 E10KN-03010800101 1 100 pkt. Price on request
NCI 6,3-2,5/0,8 E10KN-03010800201 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation polyamide 6.6
Material brass
Surface tin-plated
Operating temperature [°C] -30 ÷ +95
Size 6,3x0,8
D 4,5
L1 15,6
L2 7,8
E 15
Name Insulation colour d Cross-section [mm²]
NKCI 6,3-1/0,8 red 1,7 0,75÷1
NCI 6,3-2,5/0,8 blue 2,3 1,5÷2,5

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nasuwki_katowe_calkowicie_izolowane_typu_NKCI_EN.pdf EN 04-07-2025 260.33 KB PDF Download
Catalog card ERGOM_Nasuwki_katowe_calkowicie_izolowane_typu_NKCI_PL.pdf PL 04-07-2025 278.63 KB PDF Download
