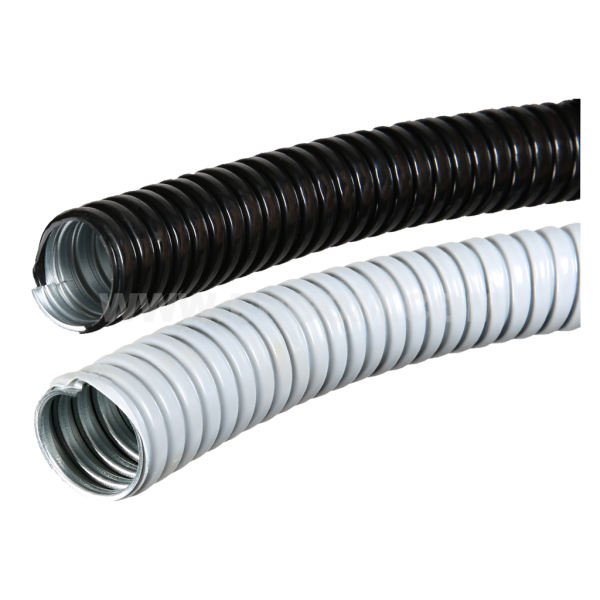

Flexible protective conduit made of galvanized steel, PVC coated, WOT type

Main data of the product series

Product name: Flexible protective conduit made of galvanized steel, PVC coated, WOT type
Category: Conduits - steel, stainless steel, steel+PVC
Operating temperature [°C]: -5 ÷ +80 (without moving: -20 ÷ +80)
Material: galvanized steel + PVC
Corrosion resistance: 3 (average) EN61386-1
IP degree of protection: IP66

Features and benefits

Product description

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
WOT 7	E03DK-10030100101	50	50	m.	Price on request
WOT 9	E03DK-10030100201	50	50	m.	Price on request
WOT 11	E03DK-10030100301	50	50	m.	Price on request
WOT 13	E03DK-10030100401	50	50	m.	Price on request
WOT 16	E03DK-10030100501	50	50	m.	Price on request
WOT 21	E03DK-10030100601	25	25	m.	Price on request
WOT 29	E03DK-10030100701	25	25	m.	Price on request
WOT 36	E03DK-10030100851	15	15	m.	Price on request
WOT 48	E03DK-10030100951	15	15	m.	Price on request
WOT 63	E03DK-10030101001	10	10	m.	Price on request
WOT 75	E03DK-10030101101	10	10	m.	Price on request
WOT 100	E03DK-10030101201	10	10	m.	Price on request
WOT 7 BK	E03DK-10030102101	50	50	m.	Price on request
WOT 9 BK	E03DK-10030102201	50	50	m.	Price on request
WOT 11 BK	E03DK-10030102301	50	50	m.	Price on request
WOT 13 BK	E03DK-10030102401	50	50	m.	Price on request
WOT 16 BK	E03DK-10030102501	50	50	m.	Price on request
WOT 21 BK	E03DK-10030102601	25	25	m.	Price on request
WOT 29 BK	E03DK-10030102701	25	25	m.	Price on request
WOT 36 BK	E03DK-10030102801	15	15	m.	Price on request
WOT 48 BK	E03DK-10030102901	15	15	m.	Price on request
WOT 63 BK	E03DK-10030103001	10	10	m.	Price on request
WOT 75 BK	E03DK-10030103101	10	10	m.	Price on request
WOT 100 BK	E03DK-10030103201	10	10	m.	Price on request
WOT 7/10	E03DK-10030200101	10	10	m.	Price on request
WOT 9/10	E03DK-10030200201	10	10	m.	Price on request
WOT 11/10	E03DK-10030200301	10	10	m.	Price on request
WOT 13/10	E03DK-10030200401	10	10	m.	Price on request
WOT 16/10	E03DK-10030200501	10	10	m.	Price on request
WOT 21/10	E03DK-10030200601	10	10	m.	Price on request
WOT 29/10	E03DK-10030200701	10	10	m.	Price on request
WOT 36/5	E03DK-10030200801	5	5	m.	Price on request
WOT 48/5	E03DK-10030200901	5	5	m.	Price on request
WOT 7/10 BK	E03DK-10030202101	10	10	m.	Price on request
WOT 9/10 BK	E03DK-10030202201	10	10	m.	Price on request
WOT 11/10 BK	E03DK-10030202301	10	10	m.	Price on request
WOT 13/10 BK	E03DK-10030202401	10	10	m.	Price on request
WOT 16/10 BK	E03DK-10030202501	10	10	m.	Price on request
WOT 21/10 BK	E03DK-10030202601	10	10	m.	Price on request
WOT 29/10 BK	E03DK-10030202701	10	10	m.	Price on request
WOT 36/5 BK	E03DK-10030202801	5	5	m.	Price on request
WOT 48/5 BK	E03DK-10030202901	5	5	m.	Price on request

Selected lines: 0

Technical data

General data

Material	galvanized steel + PVC
Operating temperature [°C]	-5 ÷ +80 (without moving: -20 ÷ +80)
Corrosion resistance	3 (average) EN61386-1
Compression strength	4 (1250 N)
Stopień ochrony	IP66
Normy	EN 61386-1; EN 61386-23

Name	Colour	Min. bending radius [mm]	Nominal size of the connector	d	D
WOT 7	grey	32	7	9,4	13,0
WOT 9	grey	40	9	11,0	15,2
WOT 11	grey	45	11	14,0	18,6
WOT 13	grey	52	13	15,0	20,4
WOT 16	grey	58	16	17,0	22,5
WOT 21	grey	72	21	22,0	28,3
WOT 29	grey	96	29	30,0	37,0
WOT 36	grey	118	36	39,0	47,0
WOT 48	grey	140	48	50,0	60,0
WOT 63	grey	200	63	63,0	72,0
WOT 75	grey	225	75	78,0	88,0
WOT 100	grey	275	100	102,0	112,0
WOT 7 BK	black	32	7	9,4	13,0
WOT 9 BK	black	40	9	11,0	15,2
WOT 11 BK	black	45	11	14,0	18,6
WOT 13 BK	black	52	13	15,0	20,4
WOT 16 BK	black	58	16	17,0	22,5
WOT 21 BK	black	72	21	22,0	28,3
WOT 29 BK	black	96	29	30,0	37,0
WOT 36 BK	black	118	36	39,0	47,0
WOT 48 BK	black	140	48	50,0	60,0
WOT 63 BK	black	200	63	63,0	72,0
WOT 75 BK	black	225	75	78,0	88,0
WOT 100 BK	black	275	100	102,0	112,0
WOT 7/10	grey	32	7	9,4	13,0
WOT 9/10	grey	40	9	11,0	15,2
WOT 11/10	grey	45	11	14,0	18,6
WOT 13/10	grey	52	13	15,0	20,4
WOT 16/10	grey	58	16	17,0	22,5
WOT 21/10	grey	72	21	22,0	28,3
WOT 29/10	grey	96	29	30,0	37,0
WOT 36/5	grey	118	36	39,0	47,0
WOT 48/5	grey	140	48	50,0	60,0
WOT 7/10 BK	black	32	7	9,4	12,5
WOT 9/10 BK	black	40	9	11,0	15,2
WOT 11/10 BK	black	45	11	14,0	18,6
WOT 13/10 BK	black	52	13	15,0	20,4
WOT 16/10 BK	black	58	16	17,0	22,5
WOT 21/10 BK	black	72	21	22,0	28,3
WOT 29/10 BK	black	96	29	30,0	37,0
WOT 36/5 BK	black	118	36	39,0	47,0
WOT 48/5 BK	black	140	48	50,0	60,0
