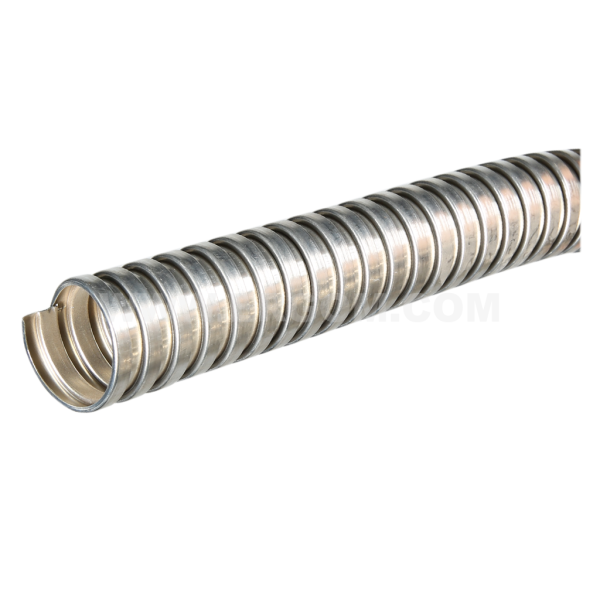

Flexible conduit made of stainless steel, WO...S type

Flexible conduit made of stainless steel, WO...S type

Main data of the product series

Product name
Flexible conduit made of stainless steel, WO...S type
Category
Conduits - steel, stainless steel, steel+PVC
Material
304 AISI steel
Corrosion resistance
4 (hight) EN61386-1
Operating temperature [°C]
-80 ÷ +500
IP degree of protection
IP40

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WO 7 S E03DK-10020100101 50 50 m. Price on request
WO 9 S E03DK-10020100201 50 50 m. Price on request
WO 11 S E03DK-10020100301 50 50 m. Price on request
WO 13 S E03DK-10020100401 50 50 m. Price on request
WO 16 S E03DK-10020100501 50 50 m. Price on request
WO 21 S E03DK-10020100601 25 25 m. Price on request
WO 29 S E03DK-10020100701 25 25 m. Price on request
WO 36 S E03DK-10020100801 15 15 m. Price on request
WO 48 S E03DK-10020100901 15 15 m. Price on request
WO 7/10 S E03DK-10020150100 10 10 m. Price on request
WO 9/10 S E03DK-10020150200 10 10 m. Price on request
WO 11/10 S E03DK-10020150300 10 10 m. Price on request
WO 13/10 S E03DK-10020150400 10 10 m. Price on request
WO 16/10 S E03DK-10020150500 10 10 m. Price on request
WO 21/10 S E03DK-10020150600 10 10 m. Price on request
WO 29/10 S E03DK-10020150700 10 10 m. Price on request
WO 36/5 S E03DK-10020150800 5 5 m. Price on request
WO 48/5 S E03DK-10020150900 5 5 m. Price on request

Selected lines: 0

Technical data

General data

Material 304 AISI steel
Halogen-free yes
Operating temperature [°C] -80 ÷ +500
Corrosion resistance 4 (hight) EN61386-1
Compression strength 4 (1250 N)
Stopień ochrony IP40
Normy EN 61386-1; EN 61386-23
Name Min. bending radius [mm] Nominal size of the connector d D
WO 7 S 28 7 10 13
WO 9 S 34 9 11 15
WO 11 S 40 11 15 18
WO 13 S 45 13 17 20
WO 16 S 50 16 18 22
WO 21 S 63 21 24 28
WO 29 S 85 29 32 37
WO 36 S 100 36 41 47
WO 48 S 125 48 54 60
WO 7/10 S 28 7 10 13
WO 9/10 S 34 9 11 15
WO 11/10 S 40 11 15 18
WO 13/10 S 45 13 17 20
WO 16/10 S 50 16 18 22
WO 21/10 S 63 21 24 28
WO 29/10 S 85 29 32 37
WO 36/5 S 100 36 41 47
WO 48/5 S 125 48 54 60

Guide

Flexible conduit made of stainless steel, WO...S type
Flexible conduit made of stainless steel, WO...S type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Rura_elastyczna_wykonana_ze_stali_nierdzewnej_typu_WO_S_EN.pdf EN 14-05-2025 312.68 KB PDF Download
Catalog card ERGOM_Rura_elastyczna_wykonana_ze_stali_nierdzewnej_typu_WO_S_PL.pdf PL 14-05-2025 333.4 KB PDF Download
