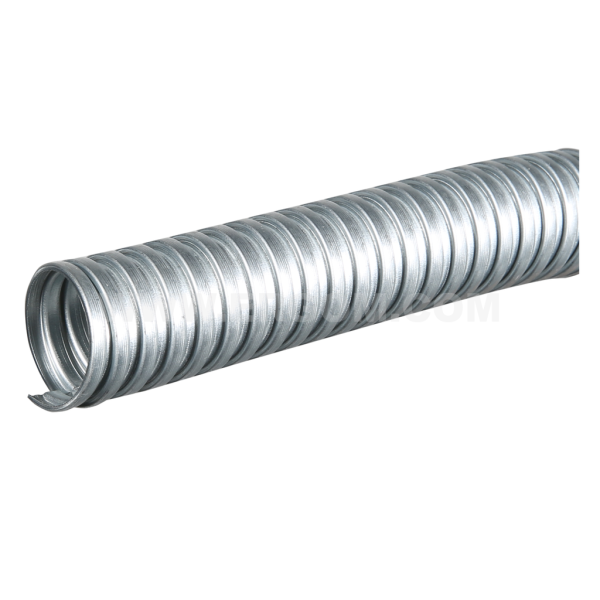

Flexible conduit made of galvanized steel, WO type

Main data of the product series

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
WO 7	E03DK-10010100101	50	50	m.	Price on request
WO 9	E03DK-10010100201	50	50	m.	Price on request
WO 11	E03DK-10010100301	50	50	m.	Price on request
WO 13	E03DK-10010100401	50	50	m.	Price on request
WO 16	E03DK-10010100501	50	50	m.	Price on request
WO 21	E03DK-10010100601	25	25	m.	Price on request
WO 29	E03DK-10010100701	25	25	m.	Price on request
WO 36	E03DK-10010100801	15	15	m.	Price on request
WO 48	E03DK-10010100901	15	15	m.	Price on request
WO 63	E03DK-10010101001	10	10	m.	Price on request
WO 75	E03DK-10010101101	10	10	m.	Price on request
WO 100	E03DK-10010101201	10	10	m.	Price on request
WO 7/10	E03DK-10010200101	10	10	m.	Price on request
WO 9/10	E03DK-10010200201	10	10	m.	Price on request
WO 11/10	E03DK-10010200301	10	10	m.	Price on request
WO 13/10	E03DK-10010200401	10	10	m.	Price on request
WO 16/10	E03DK-10010200501	10	10	m.	Price on request
WO 21/10	E03DK-10010200601	10	10	m.	Price on request
WO 29/10	E03DK-10010200701	10	10	m.	Price on request
WO 36/5	E03DK-10010200801	5	5	m.	Price on request
WO 48/5	E03DK-10010200901	5	5	m.	Price on request

Selected lines: 0

Name	Min. bending radius [mm]	Nominal size of the connector	d	D
WO 7	28	7	10	13
WO 9	34	9	11	15
WO 11	40	11	15	18
WO 13	45	13	17	20
WO 16	50	16	18	22
WO 21	63	21	24	28
WO 29	85	29	32	37
WO 36	100	36	41	47
WO 48	125	48	54	60
WO 63	150	63	63	70
WO 75	175	75	77	85
WO 100	225	100	100	109
WO 7/10	28	7	10	13
WO 9/10	34	9	11	15
WO 11/10	40	11	15	18
WO 13/10	45	13	17	20
WO 16/10	50	16	18	22
WO 21/10	63	21	24	28
WO 29/10	85	29	32	37
WO 36/5	100	36	41	47
WO 48/5	125	48	54	60

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Rura_elastyczna_wykonana_ze_stali_ocynkowanej_typu_WO_EN.pdf	EN	14-05-2025	314.74 KB	PDF	Download
Catalog card	ERGOM_Rura_elastyczna_wykonana_ze_stali_ocynkowanej_typu_WO_PL.pdf	PL	14-05-2025	336.3 KB	PDF	Download
