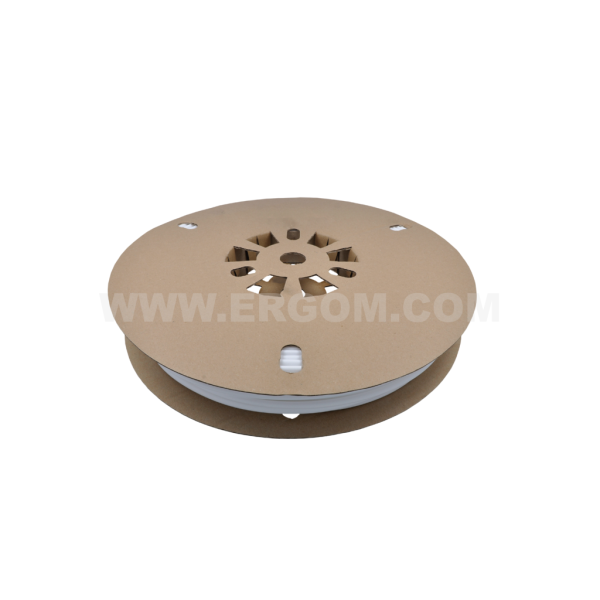

Flat printable heat-shrink profile, DPTF type

Flat printable heat-shrink profile, DPTF type

Main data of the product series

Product name
Flat printable heat-shrink profile, DPTF type
Category
LETATWIN marker printer and accessories

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DPTF 3.2/100 WT E04ZP-04020604003 1 1 pkt. Price on request
DPTF 4.2/100 WT E04ZP-04020604103 1 1 pkt. Price on request
DPTF 5.5/100 WT E04ZP-04020604203 1 1 pkt. Price on request
DPTF 6.5/100 WT E04ZP-04020604303 1 1 pkt. Price on request
DPTF 3.2/100 YL E04ZP-04020605003 1 1 pkt. Price on request
DPTF 4.2/100 YL E04ZP-04020605103 1 1 pkt. Price on request
DPTF 5.5/100 YL E04ZP-04020605203 1 1 pkt. Price on request
DPTF 6.5/100 YL E04ZP-04020605303 1 1 pkt. Price on request
DPTF 3.2/100 BK E04ZP-04020606003 1 1 pkt. Price on request
DPTF 4.2/100 BK E04ZP-04020606103 1 1 pkt. Price on request
DPTF 5.5/100 BK E04ZP-04020606203 1 1 pkt. Price on request
DPTF 6.5/100 BK E04ZP-04020606303 1 1 pkt. Price on request

Selected lines: 0

Technical data

General data

Breakdown strength [kV/mm] 20
Material cross linked polyolefin
Halogen-free yes
UV Resistance yes
Recommended shrinking temperature [°C] >90
Operating temperature [°C] -55 ÷ +105
Shrinkage factor 2:1
Length [m] 100
Klasa palności ASTM D 635-HB
Normy EN 45545-2:2020 - made of material that meets standard requirements with regard to generation of smoke and toxic substances for requirements: R22, R23 - HL1, HL2, HL3
Name Colour Size [mm] Flat width [mm] Max. ID recovered [mm]
DPTF 3.2/100 WT white 2,4 4,2 1,2
DPTF 4.2/100 WT white 3,2 5,6 1,6
DPTF 5.5/100 WT white 4,8 7,6 2,4
DPTF 6.5/100 WT white 6,4 10,7 3,2
DPTF 3.2/100 YL yellow 2,4 4,2 1,2
DPTF 4.2/100 YL yellow 3,2 5,6 1,6
DPTF 5.5/100 YL yellow 4,8 7,6 2,4
DPTF 6.5/100 YL yellow 6,4 10,7 3,2
DPTF 3.2/100 BK black 2,4 4,2 1,2
DPTF 4.2/100 BK black 3,2 5,6 1,6
DPTF 5.5/100 BK black 4,8 7,6 2,4
DPTF 6.5/100 BK black 6,4 10,7 3,2

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_DPTF_–_Koszulka_termokurczliwa_do_nadruku_EN.pdf EN 14-05-2025 277.19 KB PDF Download
Catalog card ERGOM_DPTF_–_Koszulka_termokurczliwa_do_nadruku_PL.pdf PL 14-05-2025 264.95 KB PDF Download
