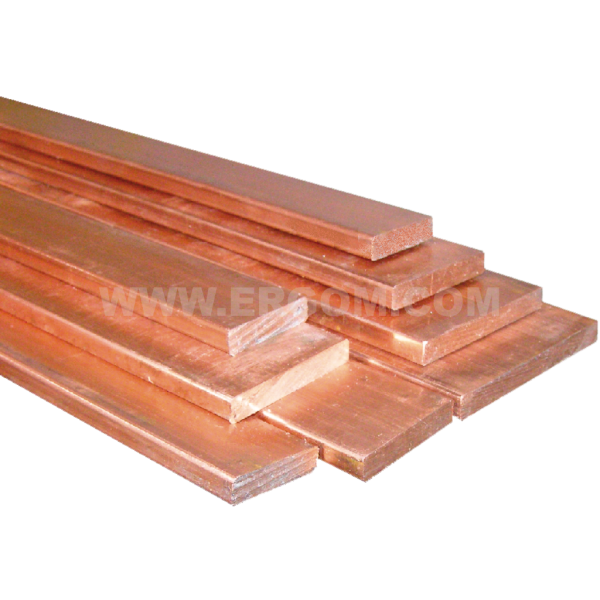

Flat copper busbars, PMP type

Main data of the product series

Product name: Flat copper busbars, PMP type
Category: Flat busbars
Material: copper M1E (Cu-ETP / E-Cu58) with high electrical conductivity
Note!: On request, we can provide busbars: AL, AL tinned, copper tin-plated.

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
PMP 12X4/2	R32RZ-01010100040	1	1	pcs.	Price on request
PMP 15X4/2	R32RZ-01010100051	1	1	pcs.	Price on request
PMP 20X5/2	R32RZ-01010100101	1	1	pcs.	Price on request
PMP 25X5/2	R32RZ-01010100201	1	1	pcs.	Price on request
PMP 30X5/2	R32RZ-01010100301	1	1	pcs.	Price on request
PMP 40X5/2	R32RZ-01010100401	1	1	pcs.	Price on request
PMP 50X5/2	R32RZ-01010100501	1	1	pcs.	Price on request
PMP 60X5/2	R32RZ-01010100601	1	1	pcs.	Price on request
PMP 80X5/2	R32RZ-01010100701	1	1	pcs.	Price on request
PMP 100X5/2	R32RZ-01010100801	1	1	pcs.	Price on request
PMP 125X5/2	R32RZ-01010100901	1	1	pcs.	Price on request
PMP 10X10/2	R32RZ-01010100931	1	1	pcs.	Price on request
PMP 20X10/2	R32RZ-01010100961	1	1	pcs.	Price on request
PMP 30X10/2	R32RZ-01010101001	1	1	pcs.	Price on request
PMP 40X10/2	R32RZ-01010101101	1	1	pcs.	Price on request
PMP 50X10/2	R32RZ-01010101201	1	1	pcs.	Price on request
PMP 60X10/2	R32RZ-01010101301	1	1	pcs.	Price on request
PMP 80X10/2	R32RZ-01010101401	1	1	pcs.	Price on request
PMP 100X10/2	R32RZ-01010101501	1	1	pcs.	Price on request
PMP 120X10/2	R32RZ-01010101601	1	1	pcs.	Price on request
PMP 200X10/2	R32RZ-01010101801	1	1	pcs.	Price on request

Selected lines: 0

Material	copper M1E (Cu-ETP / E-Cu58) with high electrical conductivity
Normy	PN-77/H-82120; PN-82/H-93620

Name	Cross-section [mm²]	I_max (65°C) (DIN 43671) [A]	A	B
PMP 12X4/2	48	162	12	4
PMP 15X4/2	60	204	15	4
PMP 20X5/2	100	274	20	5
PMP 25X5/2	125	327	25	5
PMP 30X5/2	150	379	30	5
PMP 40X5/2	200	482	40	5
PMP 50X5/2	250	583	50	5
PMP 60X5/2	300	688	60	5
PMP 80X5/2	400	715	80	5
PMP 100X5/2	500	855	100	5
PMP 125X5/2	625	1000	125	5
PMP 10X10/2	100	274	10	10
PMP 20X10/2	200	484	20	10
PMP 30X10/2	300	573	30	10
PMP 40X10/2	400	715	40	10
PMP 50X10/2	500	852	50	10
PMP 60X10/2	600	985	60	10
PMP 80X10/2	800	1240	80	10
PMP 100X10/2	1000	1490	100	10
PMP 120X10/2	1200	1740	120	10
PMP 200X10/2	2000	2690	200	10
