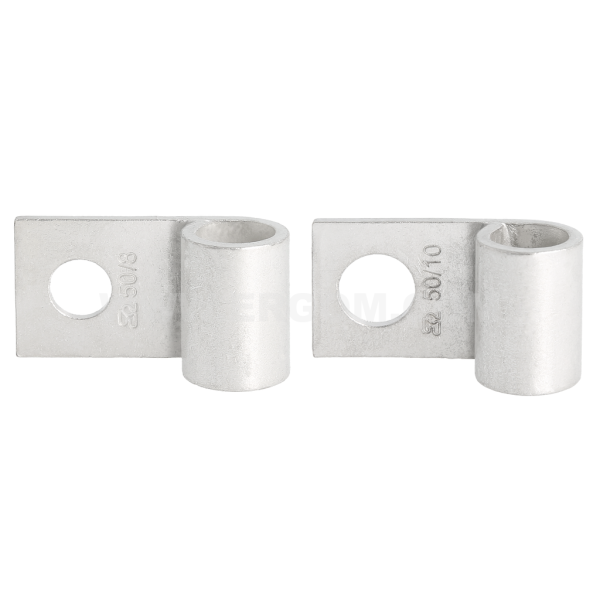

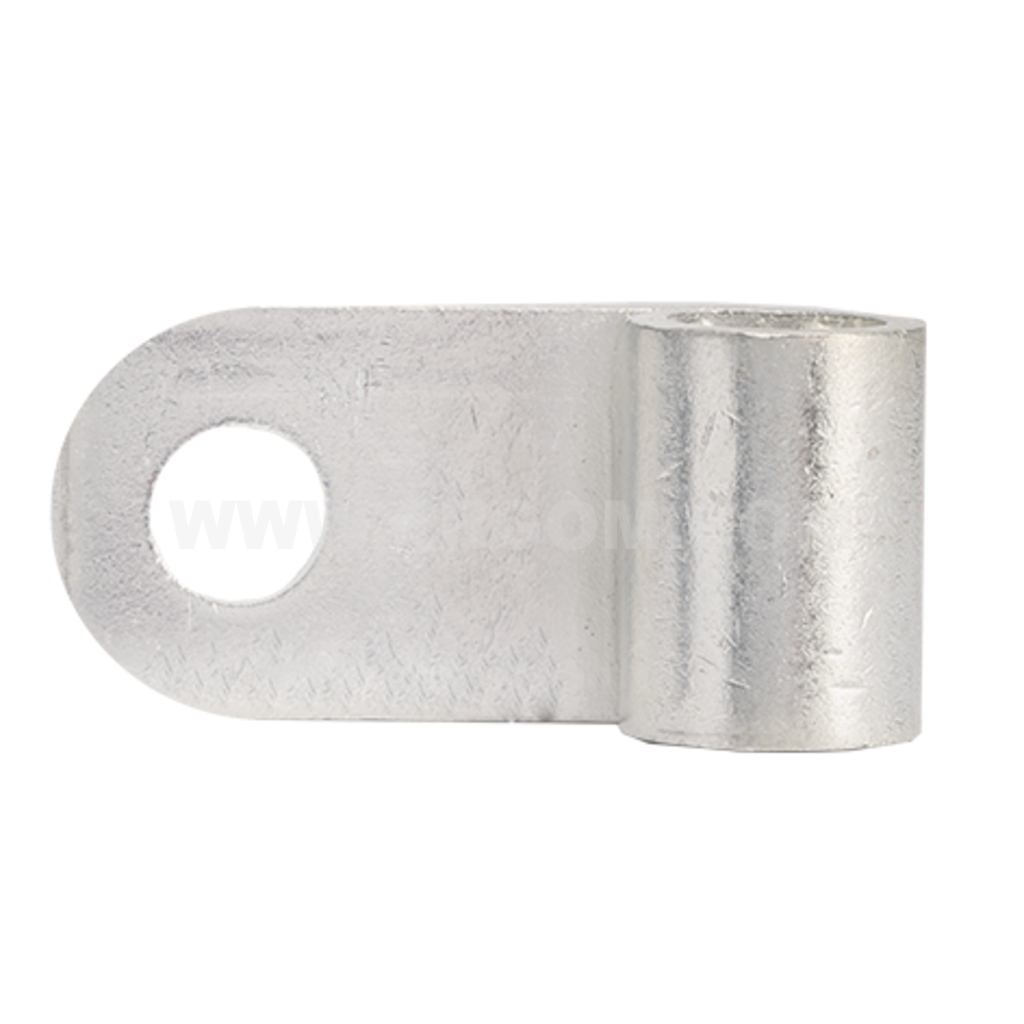

Flag terminals, KOF type

Flag terminals, KOF type

Main data of the product series

Product name: Flag terminals, KOF type
Category: Uninsulated ring, fork and pin terminals
Surface: tin-plated

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
KOF 35/8	E09KO-01090104900	100	100	pcs.	Price on request
KOF 35/10	E09KO-01090105000	100	100	pcs.	Price on request
KOF 50/8	E09KO-01090105400	1	100	pcs.	Price on request
KOF 50/10	E09KO-01090105600	100	100	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	Cu
Surface	tin-plated
d₃	20,0
Wykonanie	size out of DIN

Name	Screw hole	d₁	d₂	L	s	Cross-section [mm²]
KOF 35/8	M8	8,5	8,4	23	1,7	35
KOF 35/10	M10	8,5	10,5	26	1,7	35
KOF 50/8	M8	10,0	8,4	28	2,0	50
KOF 50/10	M10	10,0	10,5	28	2,0	50

Guide

Flag terminals, KOF type — Variant on request

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Koncowki_kablowe_flagowe _typu_KOF_EN.pdf	EN	04-07-2025	246.68 KB	PDF	Download
Catalog card	ERGOM_Koncowki_kablowe_flagowe _typu_KOF_PL.pdf	PL	04-07-2025	285.62 KB	PDF	Download
