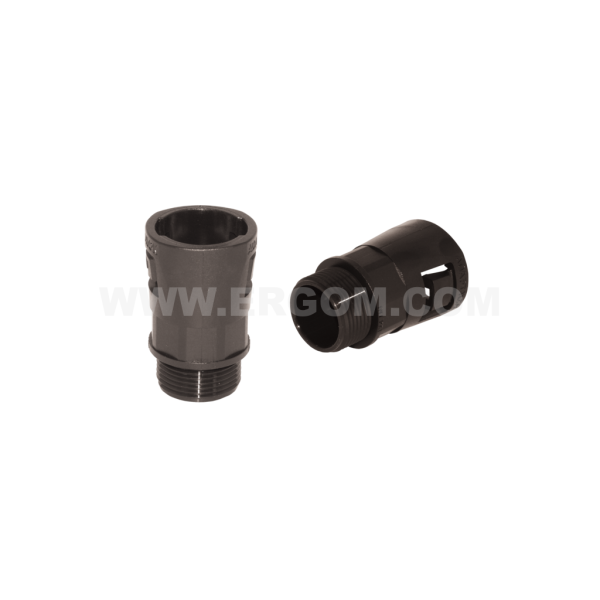

Fitting, SFD, SFD...M type

Fitting, SFD, SFD...M type

Main data of the product series

Product name
Fitting, SFD, SFD...M type
Category
Accessories for corrugated conduits made of polyamide
Material
polyamide 6.6
Colour
black
IP degree of protection
IP66
Note!
- nuts black N...M BK, N...M BK and gland seals UUPE, UUPE...M have to be ordered separately; - gray on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
SFD 7 E03DK-07060100101 10 10 pcs. Price on request
SFD 9 E03DK-07060100201 10 10 pcs. Price on request
SFD 11 E03DK-07060100301 10 10 pcs. Price on request
SFD 16 E03DK-07060100501 10 10 pcs. Price on request
SFD 21 E03DK-07060100601 10 10 pcs. Price on request
SFD 29 E03DK-07060100701 10 10 pcs. Price on request
SFD 36 E03DK-07060100803 1 1 pcs. Price on request
SFD 48 E03DK-07060100903 1 1 pcs. Price on request
SFD 12M/7 E03DK-07060200101 10 10 pcs. Price on request
SFD 16M/9 E03DK-07060200201 10 10 pcs. Price on request
SFD 16M/11 E03DK-07060200301 10 10 pcs. Price on request
SFD 20M/11 E03DK-07060200401 10 10 pcs. Price on request
SFD 20M/16 E03DK-07060200601 10 10 pcs. Price on request
SFD 25M/21 E03DK-07060200701 10 10 pcs. Price on request
SFD 32M/29 E03DK-07060200801 10 10 pcs. Price on request
SFD 40M/36 E03DK-07060200903 1 1 pcs. Price on request
SFD 50M/48 E03DK-07060201003 1 1 pcs. Price on request
SFD 63M/48 E03DK-07060201103 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Colour black
Stopień ochrony IP66
Name M thread PG thread Tube outside diameter [mm] Tube type For spanner A d D L E
SFD 7 - PG7 10,0 WTE 7, WTE 7L, WTE 7R, WTE 7W 13 8,0 16,0 25,1 10,0
SFD 9 - PG9 13,0 WTE 9, WTE 9L, WTE 9R, WTE 9W 17 11,3 21,2 31,4 10,0
SFD 11 - PG11 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 20 13,6 23,7 33,0 10,0
SFD 16 - PG16 21,2 WTE 16, WTE 16L, WTE 16R, WTE 16W 25 17,7 28,9 34,8 11,0
SFD 21 - PG21 28,5 WTE 21, WTE 21L, WTE 21R, WTE 21W 32 22,1 37,0 39,0 12,0
SFD 29 - PG29 34,5 WTE 29, WTE 29L, WTE 29R, WTE 29W 38 30,1 43,0 42,0 12,0
SFD 36 - PG36 42,5 WTE 36, WTE 36L, WTE 36R, WTE 36W 48,2 38,0 54,0 47,8 12,0
SFD 48 - PG48 54,5 WTE 48, WTE 48L, WTE 48R, WTE 48W 60,5 52,2 67,4 53,0 12,0
SFD 12M/7 M12x1,5 - 10,0 WTE 7, WTE 7L, WTE 7R, WTE 7W 13 8,0 16,1 25,2 8,0
SFD 16M/9 M16x1,5 - 13,0 WTE 9, WTE 9L, WTE 9R, WTE 9W 16 11,6 21,3 31,4 11,5
SFD 16M/11 M16x1,5 - 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 20 11,6 23,7 33,0 11,5
SFD 20M/11 M20x1,5 - 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 20 15,3 23,7 33,0 13,5
SFD 20M/16 M20x1,5 - 21,2 WTE 16, WTE 16L, WTE 16R, WTE 16W 25 14,8 28,9 34,7 14,0
SFD 25M/21 M25x1,5 - 28,5 WTE 21, WTE 21L, WTE 21R, WTE 21W 32 20,0 36,8 38,8 14,8
SFD 32M/29 M32x1,5 - 34,5 WTE 29, WTE 29L, WTE 29R, WTE 29W 39 26,5 43,2 42,0 16,0
SFD 40M/36 M40x1,5 - 42,5 WTE 36, WTE 36L, WTE 36R, WTE 36W 49,5 31,0 53,8 47,8 16,0
SFD 50M/48 M50x1,5 - 54,5 WTE 48, WTE 36L, WTE 36R, WTE 36W 60,3 43,0 66,9 53,0 16,0
SFD 63M/48 M63x1,5 - 54,5 WTE 48, WTE 36L, WTE 36R, WTE 36W 60,5 57,8 67,3 53,0 16,0
