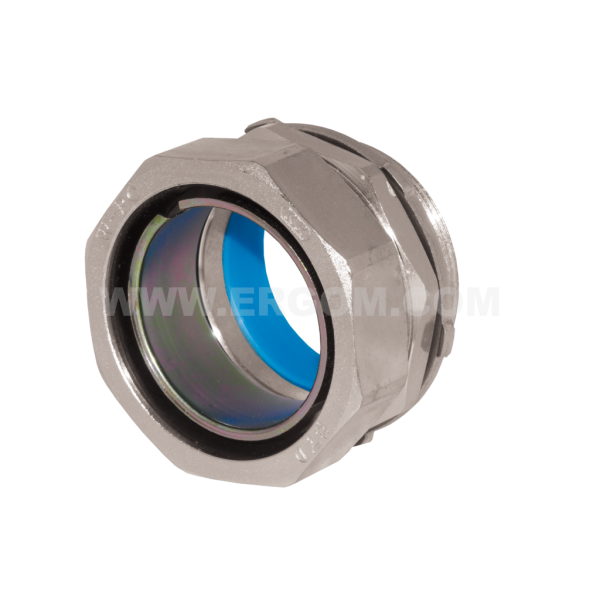

Fitting, MWE...M type

Fitting, MWE...M type

Main data of the product series

Product name: Fitting, MWE...M type
Category: Accessories for steel conduits
Material: body: zinc alloy; insert: galvanized steel; seal: rubber
Operating temperature [°C]: -30 ÷ +80
IP degree of protection: IP66
Note!: Set with sealing washer, without lock nut

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MWE 75M/63	E03DK-08010300401	1	1	pcs.	Price on request
MWE 90M/75	E03DK-08010300501	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	body: zinc alloy; insert: galvanized steel; seal: rubber
Operating temperature [°C]	-30 ÷ +80
Stopień ochrony	IP66

Name	M thread	Tube type	For spanner A	For spanner B	L	C	E
MWE 75M/63	M75x1,5	WO 63, WOT 63	88	86	40	60	22
MWE 90M/75	M90x2	WO 75, WOT 75	106	102	44	74	23

Guide

Fitting, MWE...M type

Fitting, MWE...M type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Lacznik_rury_typu_MWE_M_EN.pdf	EN	14-05-2025	227.86 KB	PDF	Download
Catalog card	ERGOM_Lacznik_rury_typu_MWE_M_PL.pdf	PL	14-05-2025	268.88 KB	PDF	Download
