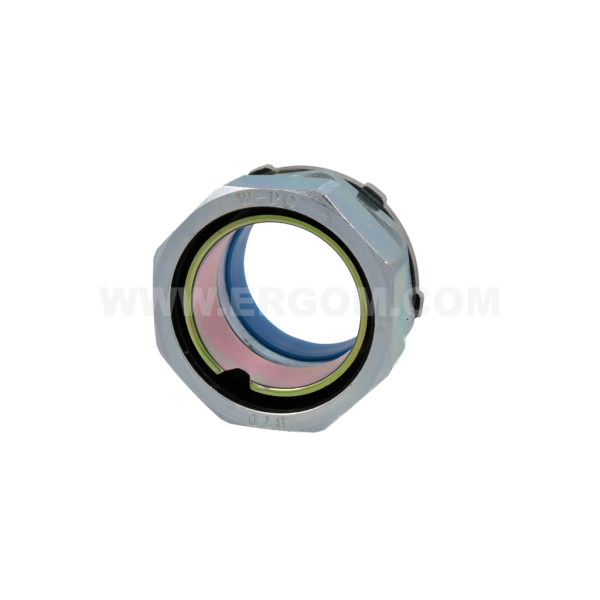

Fitting, MWE...G type

Fitting, MWE...G type

Main data of the product series

Product name: Fitting, MWE...G type
Category: Accessories for steel conduits
Material: body: zinc alloy; insert: galvanized steel; nut: galvanized steel (ST) or a zinc alloy (ZN); seal: rubber
Operating temperature [°C]: -30 ÷ +80
IP degree of protection: IP66
Note!: Set with lock nut and sealing washer.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MWE G2 1/2"/63	E03DK-08010300101	1	1	pcs.	Price on request
MWE G3"/75	E03DK-08010300201	1	1	pcs.	Price on request
MWE G4"/100	E03DK-08010300301	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	body: zinc alloy; insert: galvanized steel; nut: galvanized steel (ST) or a zinc alloy (ZN); seal: rubber
Operating temperature [°C]	-30 ÷ +80
Stopień ochrony	IP66

Name	G thread	Tube type	For spanner A	For spanner B	L	C	E	D₁	D₂	S
MWE G2 1/2"/63	G 2 1/2"	WO 63, WOT 63	88	86	40	60	22	94	88	4,5 (ST)
MWE G3"/75	G 3"	WO 75, WOT 75	106	102	44	74	23	106	101	4,5 (ST)
MWE G4"/100	G 4"	WO 100, WOT 100	133	130	50	96	28	134	128	10 (ZN)

Guide

Fitting, MWE...G type

Fitting, MWE...G type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Lacznik_rury_typu_MWE_G_EN.pdf	EN	14-05-2025	242.84 KB	PDF	Download
Catalog card	ERGOM_Lacznik_rury_typu_MWE_G_PL.pdf	PL	14-05-2025	285.26 KB	PDF	Download
