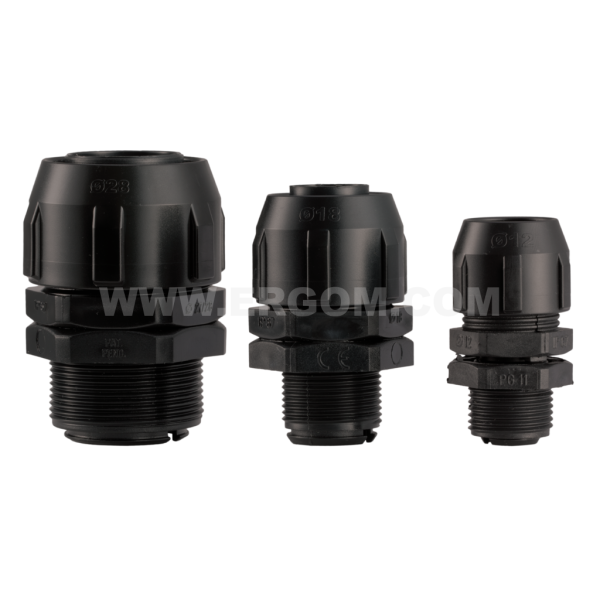

Fitting for WTG protective conduits, WPD type

Fitting for WTG protective conduits, WPD type

Main data of the product series

Product name
Fitting for WTG protective conduits, WPD type
Category
Accessories for PVC conduits
Material
PCV
Colour
black
Operating temperature [°C]
-20 ÷ +90
IP degree of protection
IP66
Note!

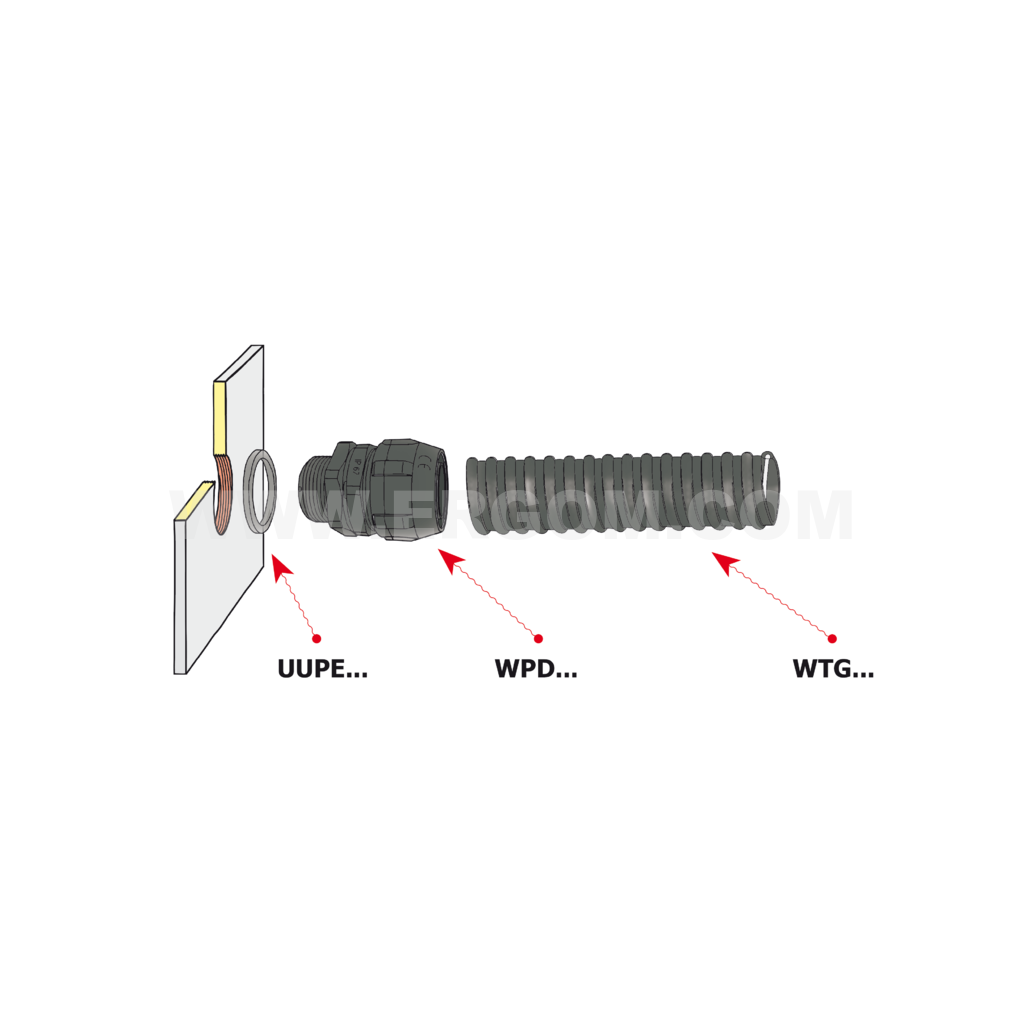

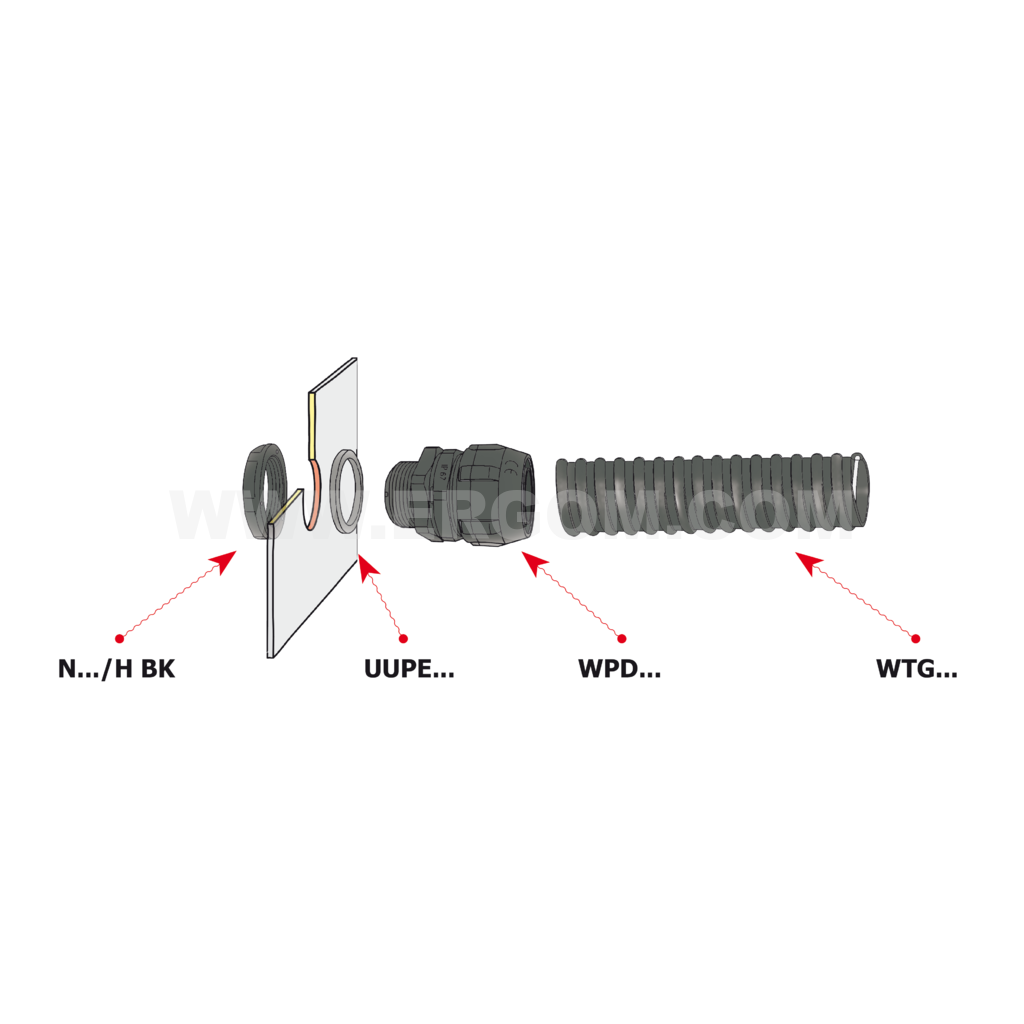

Black N.../H BK nuts and UUPE gland seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WPD 7/7 E03DK-07030100101 10 10 pcs. Price on request
WPD 9/9 E03DK-07030100201 10 10 pcs. Price on request
WPD 11/9 E03DK-07030100301 10 10 pcs. Price on request
WPD 13/13 E03DK-07030100401 10 10 pcs. Price on request
WPD 16/16 E03DK-07030100501 10 10 pcs. Price on request
WPD 21/21 E03DK-07030100601 10 10 pcs. Price on request
WPD 29/29 E03DK-07030100701 10 10 pcs. Price on request
WPD 36/36 E03DK-07030100803 1 1 pcs. Price on request
WPD 48/48 E03DK-07030100903 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material PCV
Operating temperature [°C] -20 ÷ +90
Colour black
Assembly temperature [°C] -5 ÷ +30
e 2,0
Stopień ochrony IP66
Klasa palności UL 94 V0
Normy DIN 40430
Name PG thread Tube type For spanner A For spanner B L C E
WPD 7/7 PG7 WTG 7, WTG 7 GY 23 22 34 8,0 10,0
WPD 9/9 PG9 WTG 9, WTG 9 GY 25 25 33,5 10,0 10,0
WPD 11/9 PG11 WTG 9, WTG 9 GY 25 24 16 10,0 10,0
WPD 13/13 PG13,5 WTG 13, WTG 13 GY 30 29 25 13,0 12,5
WPD 16/16 PG16 WTG 16, WTG 16 GY 33 33 29 16,0 12,5
WPD 21/21 PG21 WTG 21, WTG 21 GY 36 36 40 20,0 12,5
WPD 29/29 PG29 WTG 29, WTG 29 GY 45 43 47 25,0 17,0
WPD 36/36 PG36 WTG 36, WTG 36 GY 60 58 55 38,2 19,0
WPD 48/48 PG48 WTG 48, WTG 48 GY 70 70 55 47,8 19,5

Guide

Fitting for WTG protective conduits, WPD type
Fitting for WTG protective conduits, WPD type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_rury_typu_WPD_do_rur_ochronnych_WTG_EN.pdf EN 14-05-2025 293.09 KB PDF Download
Catalog card ERGOM_Lacznik_rury_typu_WPD_do_rur_ochronnych_WTG_PL.pdf PL 14-05-2025 302.25 KB PDF Download
