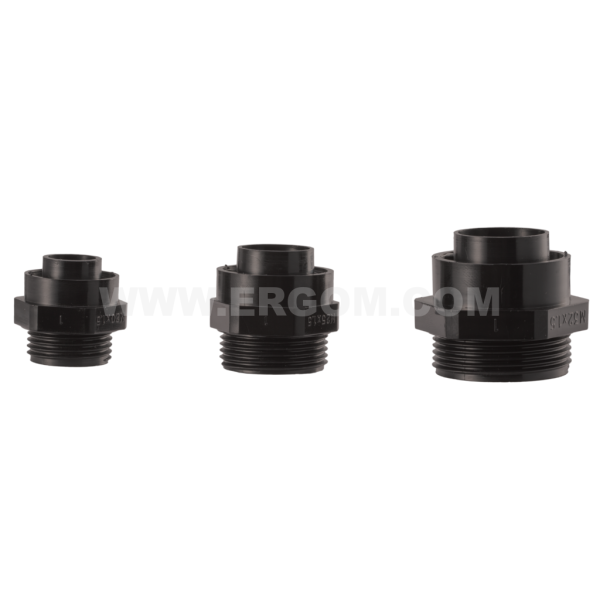

Fitting for WTG protective conduits, WD, WD...M type

Fitting for WTG protective conduits, WD, WD...M type

Main data of the product series

Product name
Fitting for WTG protective conduits, WD, WD...M type
Category
Accessories for PVC conduits
Operating temperature [°C]
-30 ÷ +90
Material
polyamide 6.6
Colour
black (RAL 9005)
IP degree of protection
IP54
Note!
Black N BK, N...M BK nuts and UUPE, UUPE...M gland seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WD 9/7 E03DK-07080100103 10 10 pcs. Price on request
WD 11/11 E03DK-07080100203 10 10 pcs. Price on request
WD 13/13 E03DK-07080100303 10 10 pcs. Price on request
WD 16/16 E03DK-07080100403 10 10 pcs. Price on request
WD 21/21 E03DK-07080100503 10 10 pcs. Price on request
WD 29/30 E03DK-07080100603 10 10 pcs. Price on request
WD 36/36 E03DK-07080100703 10 10 pcs. Price on request
WD 48NFC/48 E03DK-07080100803 1 1 pcs. Price on request
WD 16M/7 E03DK-07080200103 10 10 pcs. Price on request
WD 20M/11 E03DK-07080200203 10 10 pcs. Price on request
WD 20M/13 E03DK-07080200303 10 10 pcs. Price on request
WD 25M/16 E03DK-07080200403 10 10 pcs. Price on request
WD 32M/21 E03DK-07080200501 10 10 pcs. Price on request
WD 50M/36 E03DK-07080200603 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Operating temperature [°C] -30 ÷ +90
Colour black (RAL 9005)
Stopień ochrony IP54
Name M thread PG thread Tube type For spanner A L C E
WD 9/7 - PG9 WTG 7, WTG 7 GY 19 11,5 8,0 7
WD 11/11 - PG11 WTG 11, WTG 11 GY 22 12,0 11,0 8
WD 13/13 - PG13,5 WTG 13, WTG 13 GY 24 13,0 13,5 9
WD 16/16 - PG16 WTG 16, WTG 16 GY 27 13,5 15,5 9
WD 21/21 - PG21 WTG 21, WTG 21 GY 32 16,5 19,5 10
WD 29/30 - PG29 WTG 32, WTG 32 GY 42 19,0 27,0 12
WD 36/36 - PG36 WTG 36, WTG 36 GY 55 18,5 36,0 14
WD 48NFC/48 - PG48NFC WTG 48, WTG 48 GY 65 21,0 47,0 16
WD 16M/7 M16x1,5 - WTG 7, WTG 7 GY 20 11,5 8,0 7
WD 20M/11 M20x1,5 - WTG 11, WTG 11 GY 24 12,0 11,0 8
WD 20M/13 M20x1,5 - WTG 13, WTG 13 GY 24 13,0 13,5 9
WD 25M/16 M25x1,5 - WTG 16, WTG 16 GY 27 13,5 15,5 9
WD 32M/21 M32x1,5 - WTG 21, WTG 21 GY 36 16,5 19,5 10
WD 50M/36 M50x1,5 - WTG 36, WTG 36 GY 54 18,5 36,0 14
