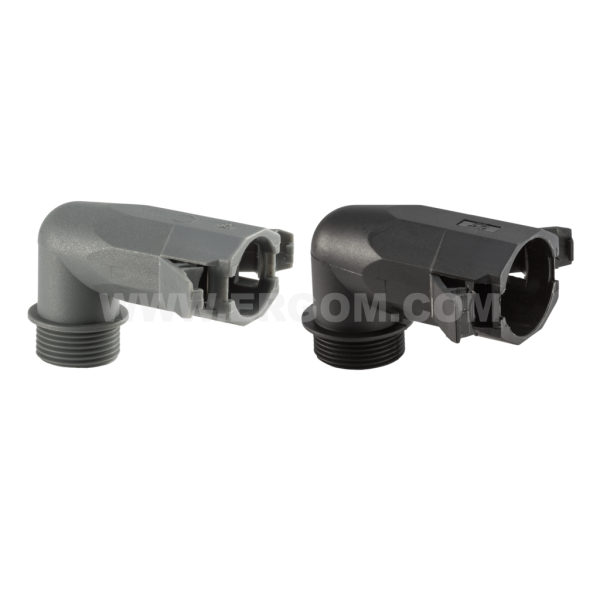

Fitting, FKD, FKD...BK type

Fitting, FKD, FKD...BK type

Main data of the product series

Product name
Fitting, FKD, FKD...BK type
Category
Accessories for corrugated conduits made of polyamide
Material
polyamide 6
Colour
grey; black (BK)
IP degree of protection
IP54
Note!
N.../H, N.../H BK nuts and UUPE gland seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
FKD 7 E03DK-07050100001 10 10 pcs. Price on request
FKD 9 E03DK-07050100101 10 10 pcs. Price on request
FKD 11 E03DK-07050100201 10 10 pcs. Price on request
FKD 13 E03DK-07050100301 10 10 pcs. Price on request
FKD 16 E03DK-07050100401 10 10 pcs. Price on request
FKD 21 E03DK-07050100451 10 10 pcs. Price on request
FKD 29 E03DK-07050100501 10 10 pcs. Price on request
FKD 36 E03DK-07050100603 1 1 pcs. Price on request
FKD 48 E03DK-07050100703 1 1 pcs. Price on request
FKD 7 BK E03DK-07050101001 10 10 pcs. Price on request
FKD 9 BK E03DK-07050101111 10 10 pcs. Price on request
FKD 11 BK E03DK-07050101211 10 10 pcs. Price on request
FKD 13 BK E03DK-07050101311 10 10 pcs. Price on request
FKD 16 BK E03DK-07050101411 10 10 pcs. Price on request
FKD 21 BK E03DK-07050101451 10 10 pcs. Price on request
FKD 29 BK E03DK-07050101501 10 10 pcs. Price on request
FKD 36 BK E03DK-07050101603 1 1 pcs. Price on request
FKD 48 BK E03DK-07050101703 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Operating temperature [°C] -40 ÷ +120
Colour grey; black (BK)
Stopień ochrony IP54
Name PG thread Tube inside diameter [mm] Tube outside diameter [mm] Tube type For spanner A L E H
FKD 7 PG7 6,5 10,0 WTE 7, WTE 7L, WTE 7R, WTE 7W 13 20,5 10 46,5
FKD 9 PG9 9,6 13,0 WTE 9, WTE 9L, WTE 9R, WTE 9W 18 25,0 10 53,0
FKD 11 PG11 11,6 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 19 25,5 10 54,5
FKD 13 PG13,5 14,0 18,6 WTE 13, WTE 13L, WTE 13R, WTE 13W 22 29,5 10 58,5
FKD 16 PG16 16,5 21,2 WTE 16, WTE 16L, WTE 16R, WTE 16W 26 31,5 11 59,0
FKD 21 PG21 21,7 28,5 WTE 21, WTE 21L, WTE 21R, WTE 21W 32 38,5 11 74,0
FKD 29 PG29 27,7 34,5 WTE 29, WTE 29L, WTE 29R, WTE 29W 40 47,0 12 89,0
FKD 36 PG36 35,2 42,5 WTE 36, WTE 36L, WTE 36R, WTE 36W 50 58,0 12 107,0
FKD 48 PG48 46,5 54,5 WTE 48, WTE 48L, WTE 48R, WTE 48W 64 72,0 13 121,0
FKD 7 BK PG7 6,5 10,0 WTE 7, WTE 7L, WTE 7R, WTE 7W 13 20,5 10 46,5
FKD 9 BK PG9 9,6 13,0 WTE 9, WTE 9L, WTE 9R, WTE 9W 18 25,0 10 53,0
FKD 11 BK PG11 11,6 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 19 25,5 10 54,5
FKD 13 BK PG13,5 14,0 18,6 WTE 13, WTE 13L, WTE 13R, WTE 13W 22 29,5 10 58,5
FKD 16 BK PG16 16,5 21,2 WTE 16, WTE 16L, WTE 16R, WTE 16W 26 31,5 11 59,0
FKD 21 BK PG21 21,7 28,5 WTE 21, WTE 21L, WTE 21R, WTE 21W 32 38,5 11 74,0
FKD 29 BK PG29 27,7 34,5 WTE 29, WTE 29L, WTE 29R, WTE 29W 40 47,0 12 89,0
FKD 36 BK PG36 35,2 42,5 WTE 36, WTE 36L, WTE 36R, WTE 36W 50 58,0 12 107,0
FKD 48 BK PG48 46,5 54,5 WTE 48, WTE 48L, WTE 48R, WTE 48W 64 72,0 13 121,0

Guide

Fitting, FKD, FKD...BK type
Fitting, FKD, FKD...BK type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_rury_typu_FKD_FKD_BK_EN.pdf EN 05-09-2025 340.56 KB PDF Download
Catalog card ERGOM_Lacznik_rury_typu_FKD_FKD_BK_PL.pdf PL 05-09-2025 382.89 KB PDF Download
