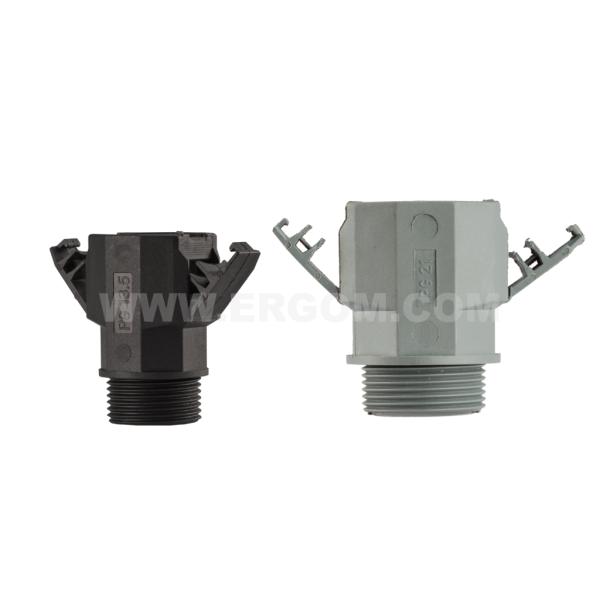

Fitting, FD, FD...BK type

Fitting, FD, FD...BK type

Main data of the product series

Product name
Fitting, FD, FD...BK type
Category
Accessories for corrugated conduits made of polyamide
Material
polyamide 6
Colour
grey; black (BK)
IP degree of protection
IP54
Note!
N.../H, N.../H BK nuts and UUPE gland seals have to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
FD 7 E03DK-07040100011 10 10 pcs. Price on request
FD 9 E03DK-07040100101 10 10 pcs. Price on request
FD 11 E03DK-07040100201 10 10 pcs. Price on request
FD 13 E03DK-07040100301 10 10 pcs. Price on request
FD 16 E03DK-07040100401 10 10 pcs. Price on request
FD 21 E03DK-07040100501 10 10 pcs. Price on request
FD 29 E03DK-07040100601 10 10 pcs. Price on request
FD 36 E03DK-07040100703 1 1 pcs. Price on request
FD 48 E03DK-07040100803 1 1 pcs. Price on request
FD 7 BK E03DK-07040101001 10 10 pcs. Price on request
FD 9 BK E03DK-07040101111 10 10 pcs. Price on request
FD 11 BK E03DK-07040101211 10 10 pcs. Price on request
FD 13 BK E03DK-07040101311 10 10 pcs. Price on request
FD 16 BK E03DK-07040101411 10 10 pcs. Price on request
FD 21 BK E03DK-07040101501 10 10 pcs. Price on request
FD 29 BK E03DK-07040101601 10 10 pcs. Price on request
FD 36 BK E03DK-07040101703 1 1 pcs. Price on request
FD 48 BK E03DK-07040101803 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Operating temperature [°C] -40 ÷ +120
Colour grey; black (BK)
Stopień ochrony IP54
Name PG thread Tube inside diameter [mm] Tube outside diameter [mm] Tube type For spanner A D L E
FD 7 PG7 6,5 10,0 WTE 7, WTE 7L, WTE 7R, WTE 7W 13 18,2 29,0 10,0
FD 9 PG9 9,6 13,0 WTE 9, WTE 9L, WTE 9R, WTE 9W 18 21,3 29,5 10,0
FD 11 PG11 11,6 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 19 24,0 30,5 10,0
FD 13 PG13,5 14,0 18,6 WTE 13, WTE 13L, WTE 13R, WTE 13W 22 26,7 30,0 10,0
FD 16 PG16 16,5 21,2 WTE 16, WTE 16L, WTE 16R, WTE 16W 26 29,7 30,5 10,0
FD 21 PG21 21,7 28,5 WTE 21, WTE 21L, WTE 21R, WTE 21W 32 38,0 36,7 11,0
FD 29 PG29 27,7 34,5 WTE 29, WTE 29L, WTE 29R, WTE 29W 40 44,5 41,8 12,0
FD 36 PG36 35,2 42,5 WTE 36, WTE 36L, WTE 36R, WTE 36W 48,7-48,9 54,0 45,4 12,0
FD 48 PG48 46,5 54,5 WTE 48, WTE 48L, WTE 48R, WTE 48W 63 71,1 49,9 18,7
FD 7 BK PG7 6,5 10,0 WTE 7, WTE 7L, WTE 7R, WTE 7W 13 18,2 29,0 10,0
FD 9 BK PG9 9,6 13,0 WTE 9, WTE 9L, WTE 9R, WTE 9W 18 21,3 29,5 10,0
FD 11 BK PG11 11,6 15,8 WTE 11, WTE 11L, WTE 11R, WTE 11W 19 24,0 30,5 10,0
FD 13 BK PG13,5 14,0 18,6 WTE 13, WTE 13L, WTE 13R, WTE 13W 22 26,7 30,0 10,0
FD 16 BK PG16 16,5 21,2 WTE 16, WTE 16L, WTE 16R, WTE 16W 26 29,7 30,5 10,0
FD 21 BK PG21 21,7 28,5 WTE 21, WTE 21L, WTE 21R, WTE 21W 32 38,0 36,7 11,0
FD 29 BK PG29 27,7 34,5 WTE 29, WTE 29L, WTE 29R, WTE 29W 40 45,2 41,8 12,0
FD 36 BK PG36 35,2 42,5 WTE 36, WTE 36L, WTE 36R, WTE 36W 48,7-48,9 54,0 45,4 12,0
FD 48 BK PG48 46,5 54,5 WTE 48, WTE 48L, WTE 48R, WTE 48W 63 71,1 49,9 18,7

Guide

Fitting, FD, FD...BK type
Fitting, FD, FD...BK type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_rury_typu_FD_FD_BK_EN.pdf EN 05-09-2025 338.16 KB PDF Download
Catalog card ERGOM_Lacznik_rury_typu_FD_FD_BK_PL.pdf PL 05-09-2025 380.31 KB PDF Download
