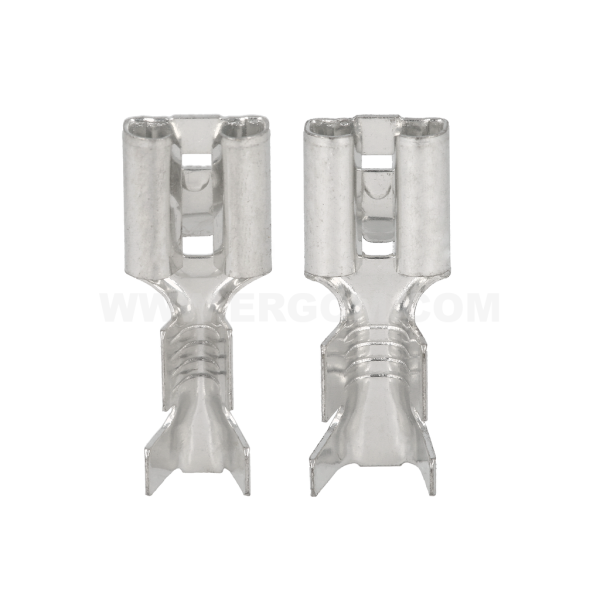

Female push-on connectors with elastic protection, NZJ type

Female push-on connectors with elastic protection, NZJ type

Main data of the product series

Product name
Female push-on connectors with elastic protection, NZJ type
Category
Female push-on connectors
Surface
tin-plated
Material
brass

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NZJ 6,3-2,5/0,8 E10KN-01010700100 2 100 pkt. Price on request
NZJ 6,3-6/0,8 E10KN-01010700200 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material brass
Surface tin-plated
Size 6,3 x 0,8
L1 19,2
L2 7,4
a1 8,5
Name s a2 w1 w2 Cross-section [mm²]
NZJ 6,3-2,5/0,8 0,35 4,45 3,8 5,5 1,5÷2,5
NZJ 6,3-6/0,8 0,38 4,25 5,4 6 4÷6

Guide

Female push-on connectors with elastic protection, NZJ type
Female push-on connectors with elastic protection, NZJ type
Female push-on connectors with elastic protection, NZJ type
Female push-on connectors with elastic protection, NZJ type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nasuwki_konektorowe_ze_sprezystym_zabezpieczeniem_typu_NZJ_EN.pdf EN 04-07-2025 432.7 KB PDF Download
Catalog card ERGOM_Nasuwki_konektorowe_ze_sprezystym_zabezpieczeniem_typu_NZJ_PL.pdf PL 04-07-2025 453.91 KB PDF Download
