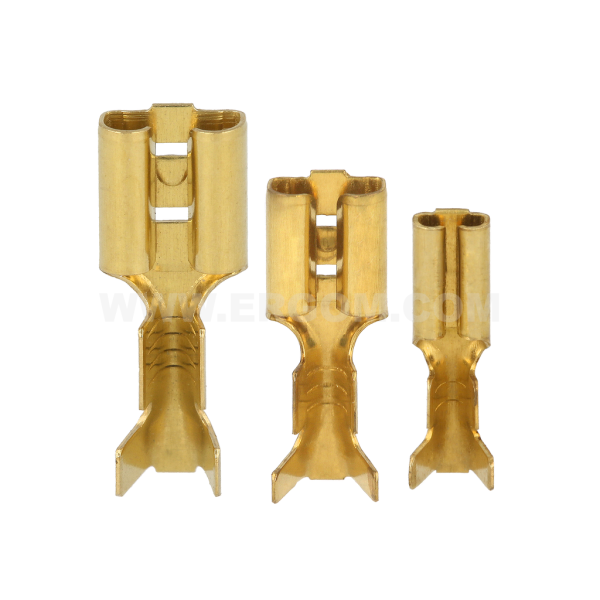

Female push-on connectors, N...NC type

Female push-on connectors, N...NC type

Main data of the product series

Product name: Female push-on connectors, N...NC type
Category: Female push-on connectors
Surface: uncoated
Material: brass

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
N 2,8-0,5/0,5 NC	E10KN-01010200151	2	100	pkt.	Price on request
N 2,8-0,5/0,8 NC	E10KN-01010200201	1	100	pkt.	Price on request
N 2,8-1/0,5 NC	E10KN-01010200301	2	100	pkt.	Price on request
N 2,8-1/0,8 NC	E10KN-01010200401	2	100	pkt.	Price on request
N 4,8-1/0,5 NC	E10KN-01010200501	2	100	pkt.	Price on request
N 4,8-1/0,8 NC	E10KN-01010200601	2	100	pkt.	Price on request
N 4,8-2,5/0,5 NC	E10KN-01010200701	2	100	pkt.	Price on request
N 4,8-2,5/0,8 NC	E10KN-01010200801	1	100	pkt.	Price on request
N 6,3-1/0,8 NC	E10KN-01010200901	1	100	pkt.	Price on request
N 6,3-2,5/0,8 NC	E10KN-01010201001	1	100	pkt.	Price on request
N 6,3-6/0,8 NC	E10KN-01010201201	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Material	brass
Surface	uncoated

Name	Size	s	L₁	L₂	a₁	a₂	w₁	w₂	Cross-section [mm²]
N 2,8-0,5/0,5 NC	2,8 x 0,5	0,30	14,0	6,0	5,5	2,7	2,3	3,4	0,2÷0,5
N 2,8-0,5/0,8 NC	2,8 x 0,8	0,30	14,0	6,0	5,5	2,7	2,3	3,4	0,2÷0,5
N 2,8-1/0,5 NC	2,8 x 0,5	0,30	14,0	6,0	5,5	2,9	2,4	3,8	0,5÷1
N 2,8-1/0,8 NC	2,8 x 0,8	0,30	14,0	6,0	5,5	2,9	2,4	3,8	0,5÷1
N 4,8-1/0,5 NC	4,8 x 0,5	0,35	15,6	6,0	6,0	3,4	3,1	4,5	0,5÷1
N 4,8-1/0,8 NC	4,8 x 0,8	0,35	15,6	6,0	6,0	3,4	3,1	4,5	0,5÷1
N 4,8-2,5/0,5 NC	4,8 x 0,5	0,35	15,6	6,0	6,0	3,4	3,8	5,2	1,5÷2,5
N 4,8-2,5/0,8 NC	4,8 x 0,8	0,35	15,6	6,0	6,0	3,4	3,8	5,2	1,5÷2,5
N 6,3-1/0,8 NC	6,3 x 0,8	0,35	19,2	7,4	8,8	4,7	3,0	4,5	0,5÷1
N 6,3-2,5/0,8 NC	6,3 x 0,8	0,40	19,2	7,4	9,3	5,2	3,8	5,7	1÷2,5
N 6,3-6/0,8 NC	6,3 x 0,8	0,40	19,2	7,4	8,8	4,7	5,4	6,0	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Nasuwki_konektorowe_typu_N_NC_EN.pdf	EN	04-07-2025	209.19 KB	PDF	Download
Catalog card	ERGOM_Nasuwki_konektorowe_typu_N_NC_PL.pdf	PL	04-07-2025	253.95 KB	PDF	Download
