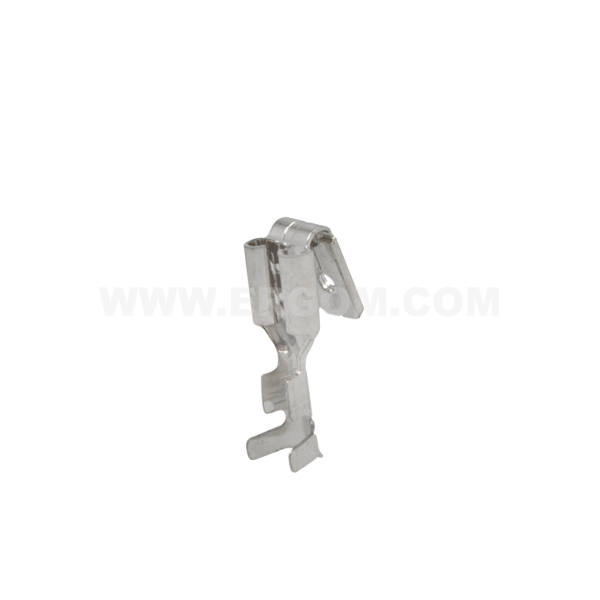

Female piggyback push-on connectors, NW type

Female piggyback push-on connectors, NW type

Main data of the product series

Product name
Female piggyback push-on connectors, NW type
Category
Female push-on connectors
Surface
tin-plated
Material
brass

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NW 4,8-1/0,8 E10KN-01030100100 2 100 pkt. Price on request
NW 6,3-1/0,8 E10KN-01030100301 2 100 pkt. Price on request
NW 6,3-2,5/0,8 E10KN-01030100400 2 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material brass
Surface tin-plated
s 0,37
Name Size DIN L1 L2 L3 a1 a2 w1 w2 Cross-section [mm²]
NW 4,8-1/0,8 4,8 x 0,8 − 16 6,0 6,0 6,6 3,5 3,0 4,5 0,5÷1
NW 6,3-1/0,8 6,3 x 0,8 √ 20 7,4 9,0 8,8 4,3 3,0 4,5 0,5÷1
NW 6,3-2,5/0,8 6,3 x 0,8 √ 20 7,4 9,0 8,8 4,3 3,8 5,5 1,5÷2,5

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nasuwki_z_odgalezieniem_typu_NW_EN.pdf EN 04-07-2025 236.58 KB PDF Download
Catalog card ERGOM_Nasuwki_z_odgalezieniem_typu_NW_PL.pdf PL 04-07-2025 265.29 KB PDF Download
