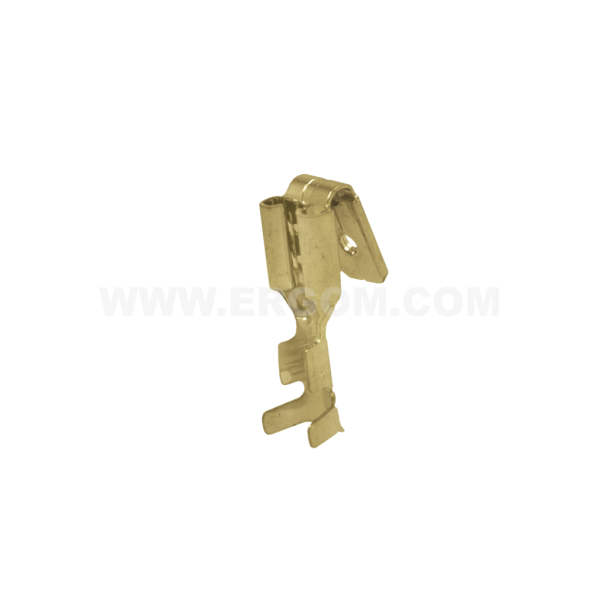

Female piggyback push-on connectors, NW...NC type

Female piggyback push-on connectors, NW...NC type

Main data of the product series

Product name
Female piggyback push-on connectors, NW...NC type
Category
Female push-on connectors
Surface
uncoated
Material
brass

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NW 4,8-1/0,8 NC E10KN-01030200101 1 100 pkt. Price on request
NW 4,8-2,5/0,8 NC E10KN-01030200201 1 100 pkt. Price on request
NW 6,3-1/0,8 NC E10KN-01030200301 2 100 pkt. Price on request
NW 6,3-2,5/0,8 NC E10KN-01030200401 2 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material brass
Surface uncoated
s 0,37
Name Size DIN L1 L2 L3 a1 a2 w1 w2 Cross-section [mm²]
NW 4,8-1/0,8 NC 4,8 x 0,8 – 16 6,0 6,0 6,6 3,5 3,0 4,5 0,5÷1
NW 4,8-2,5/0,8 NC 4,8 x 0,8 – 16 6,0 6,0 6,6 3,5 3,8 5,2 1,5÷2,5
NW 6,3-1/0,8 NC 6,3 x 0,8 √ 20 7,4 9,0 8,8 4,3 3,0 4,5 0,5÷1
NW 6,3-2,5/0,8 NC 6,3 x 0,8 √ 20 7,4 9,0 8,8 4,3 3,8 5,5 1,5÷2,5

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nasuwki_z_odgalezieniem_typu_NW_NC_EN.pdf EN 04-07-2025 209.1 KB PDF Download
Catalog card ERGOM_Nasuwki_z_odgalezieniem_typu_NW_NC_PL.pdf PL 04-07-2025 235.97 KB PDF Download
