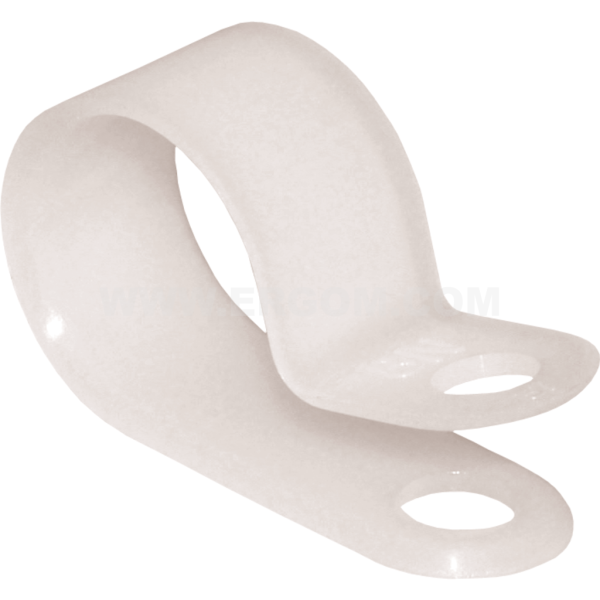

Fasteners EE type

Fasteners EE type

Main data of the product series

Product name
Fasteners EE type
Category
Not mating with cable ties
Operating temperature [°C]
-40 ÷ +85
Material
polyamide 6.6
Flammability class
UL 94 V2

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
EE31 E01EM-01040100101 2 100 pkt. Price on request
EE47 E01EM-01040100201 2 100 pkt. Price on request
EE63 E01EM-01040100301 2 100 pkt. Price on request
EE79 E01EM-01040100401 2 100 pkt. Price on request
EE95 E01EM-01040100501 2 100 pkt. Price on request
EE127 E01EM-01040100601 1 100 pkt. Price on request
EE142 E01EM-01040100701 1 100 pkt. Price on request
EE190 E01EM-01040100801 1 100 pkt. Price on request
EE222 E01EM-01040100901 1 100 pkt. Price on request
EE285 E01EM-01040101001 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Operating temperature [°C] -40 ÷ +85
Colour transparent
Klasa palności UL 94 V2
Name A D d E W
EE31 9,5 2,8 4,4 1,2 9,5
EE47 10,3 4,6 4,4 1,2 9,5
EE63 11,1 5,6 4,4 1,2 9,5
EE79 11,9 7,4 4,4 1,2 9,5
EE95 12,7 10,0 4,4 1,2 9,5
EE127 14,3 11,9 4,4 1,2 9,5
EE142 15,1 13,5 4,4 1,2 9,5
EE190 17,5 16,8 4,4 1,5 12,7
EE222 19 21,9 5,1 1,5 12,7
EE285 23 25,0 5,1 1,5 12,7

Guide

Fasteners EE type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Elementy_mocujace_typu_EE_EN.pdf EN 14-05-2025 175.38 KB PDF Download
Catalog card ERGOM_Elementy_mocujace_typu_EE_PL.pdf PL 14-05-2025 219.11 KB PDF Download
